FOR SALE IS ONE (1)

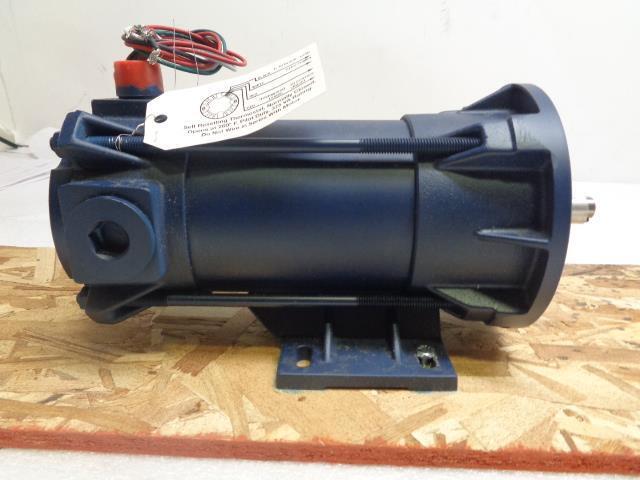

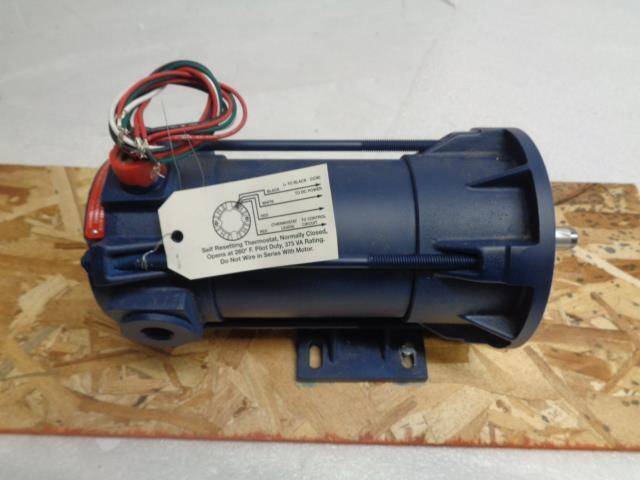

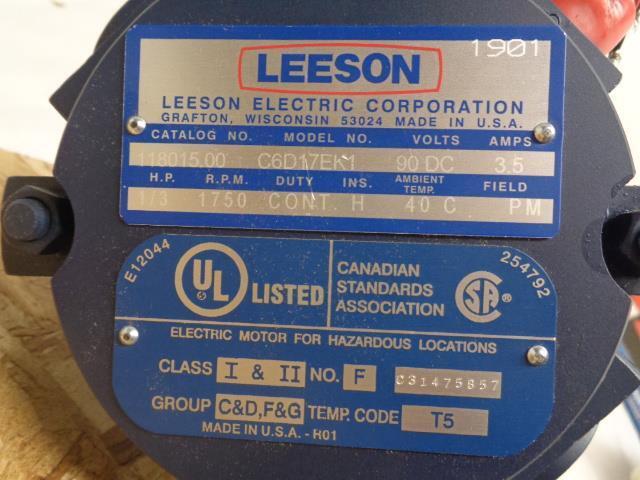

NEW LEESON 1/3HP 1750RPM 56C TENV 90VDC MOTOR 118015.00

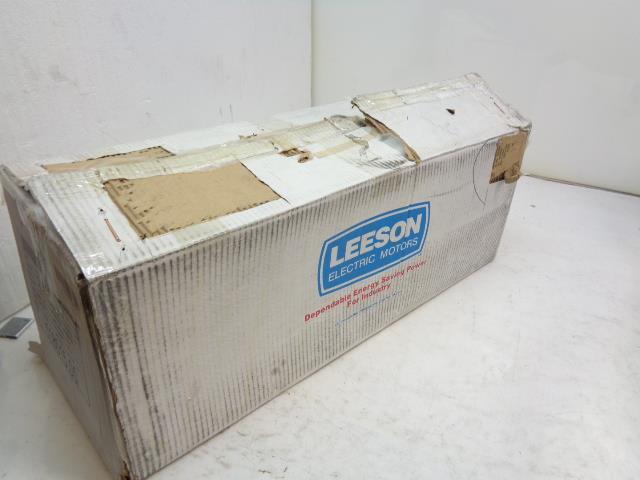

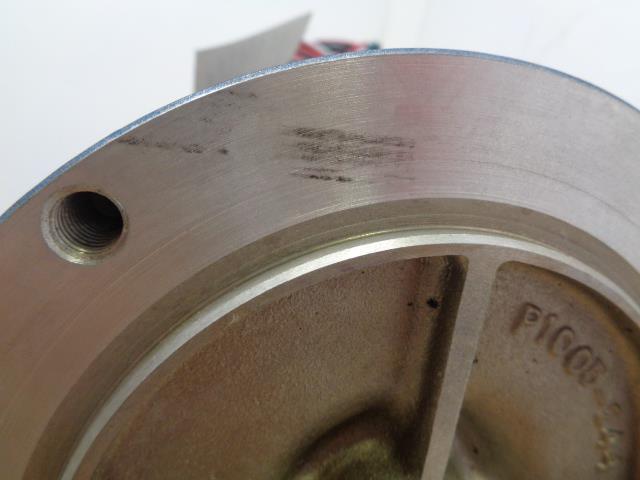

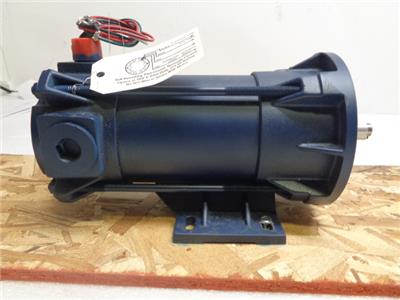

BOX HAS SOME WEAR FROM HANDLING AND STORAGE. ITEM IS SECURED TO A PLYWOOD BOARD, AND IS INTACT AND IN PRISTINE CONDITION, WITH NO VISIBLE WEAR OR DAMAGE FROM HANDLING AND STORAGE, ONLY A FEW MINOR SCUFFS.
COMES ONLY WITH WHAT IS PICTURED. SEE PICTURES FOR MORE DETAILS.
Details:

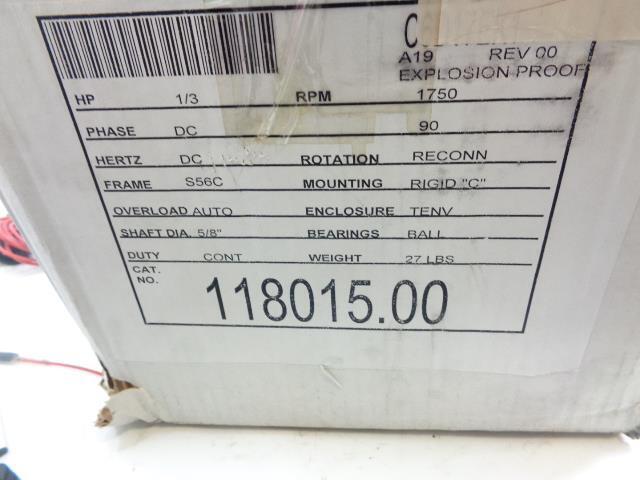

MODEL# 118015.00
SPECS
Output HP
0.33 Hp
Output KW
0.25 kW
Voltage
90 V
Current
3.5 A
Speed
1750 rpm
Service Factor
1
Efficiency
78.9 %
Duty
Continuous
Insulation Class
H
Frame
S56C
Enclosure
Totally Enclosed Non Ventilated
Thermal Protection
Automatic
Ambient Temperature
40 °C
Drive End Bearing Size
6203
Opp Drive End Bearing Size
6203
UL
Recognized
CSA
Y
CE
N
Rotation
Reversible
Mounting
Rigid C base
Overall Length
13.41 in

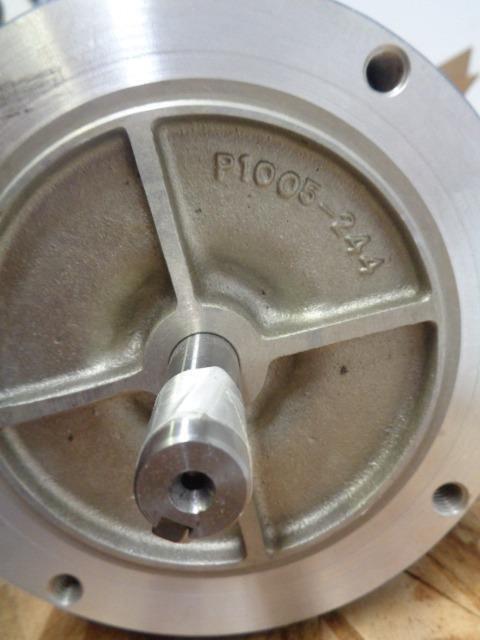

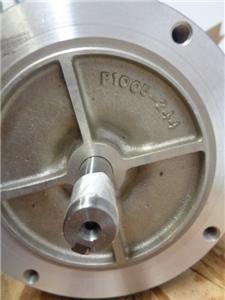

Shaft Diameter
0.625 in
Shaft Extension
2.1 in
Torque
12.0 LB-IN
Outline Drawing
034446

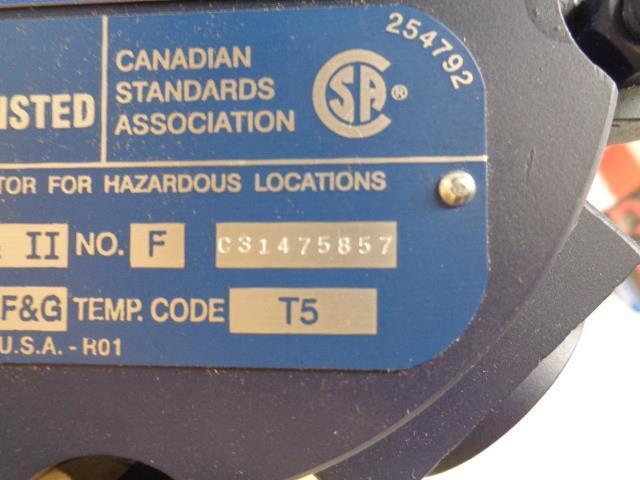

LEESON EXPLOSION-PROOF DC NEMA Frame Motors are designed and approved for application in hazardous environments having certain explosive gases or materials present.
Features: Rugged mechanical construction meeting all requirements for safety.
UL and CSA listed. NEMA 56C face with removable 56 frame base.

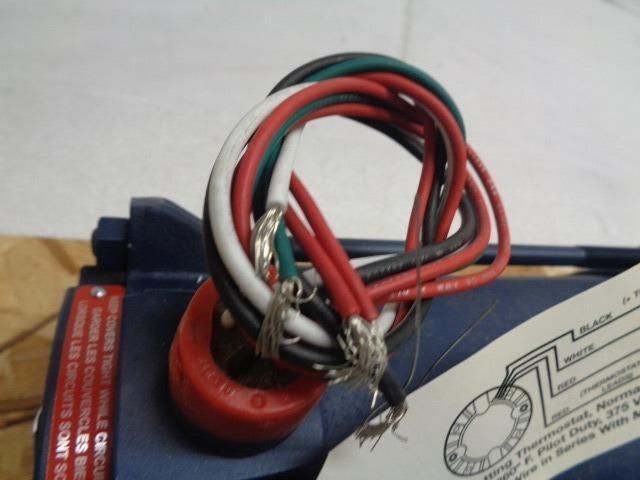

Leads exit through 3/4"-14NPT pipe-nipple in the top of the motor frame, opposite the shaft end.
Conduit box is not provided.

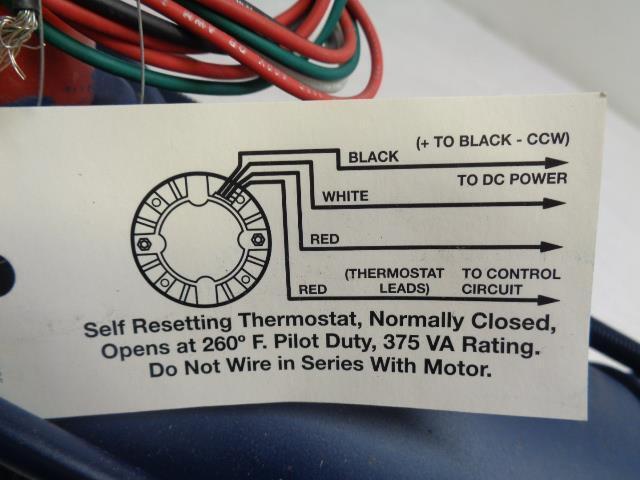

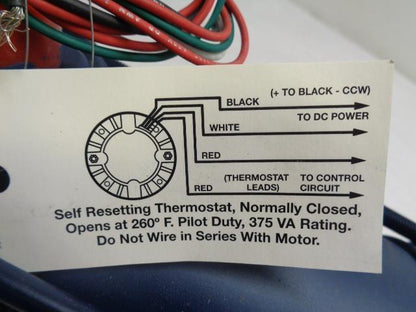

These motors have pilot-duty thermostats as standard that must be connected to the SCR control.
They are rated for continuous duty with full wave SCR (thyristor) controls.
Double-shielded, per-lubricated ball bearings are standard. Easy brush access for field service.
These motors are UL and CSA listed.
THIS IS ALL THE INFORMATION I COULD FIND ON THIS ITEM. PLEASE DO YOUR OWN RESEARCH AND CONSULT A CERTIFIED MECHANIC BEFORE PURCHASING, TO ENSURE THAT THIS ITEM FITS YOUR NEEDS.
