FOR SALE IS ONE (1)
GE SENSING & INSPECTION USM GO ULTRASONIC FLAW DETECTOR NEW
ITEM IS NEW AND IN EXCELENT CONDITION. ANY DAMAGE IS DUE TO SHIPPING ND HANDLING. ONLY COMES WITH WHAT IS PICTURED, SEE PICS FOR MORE INFO.

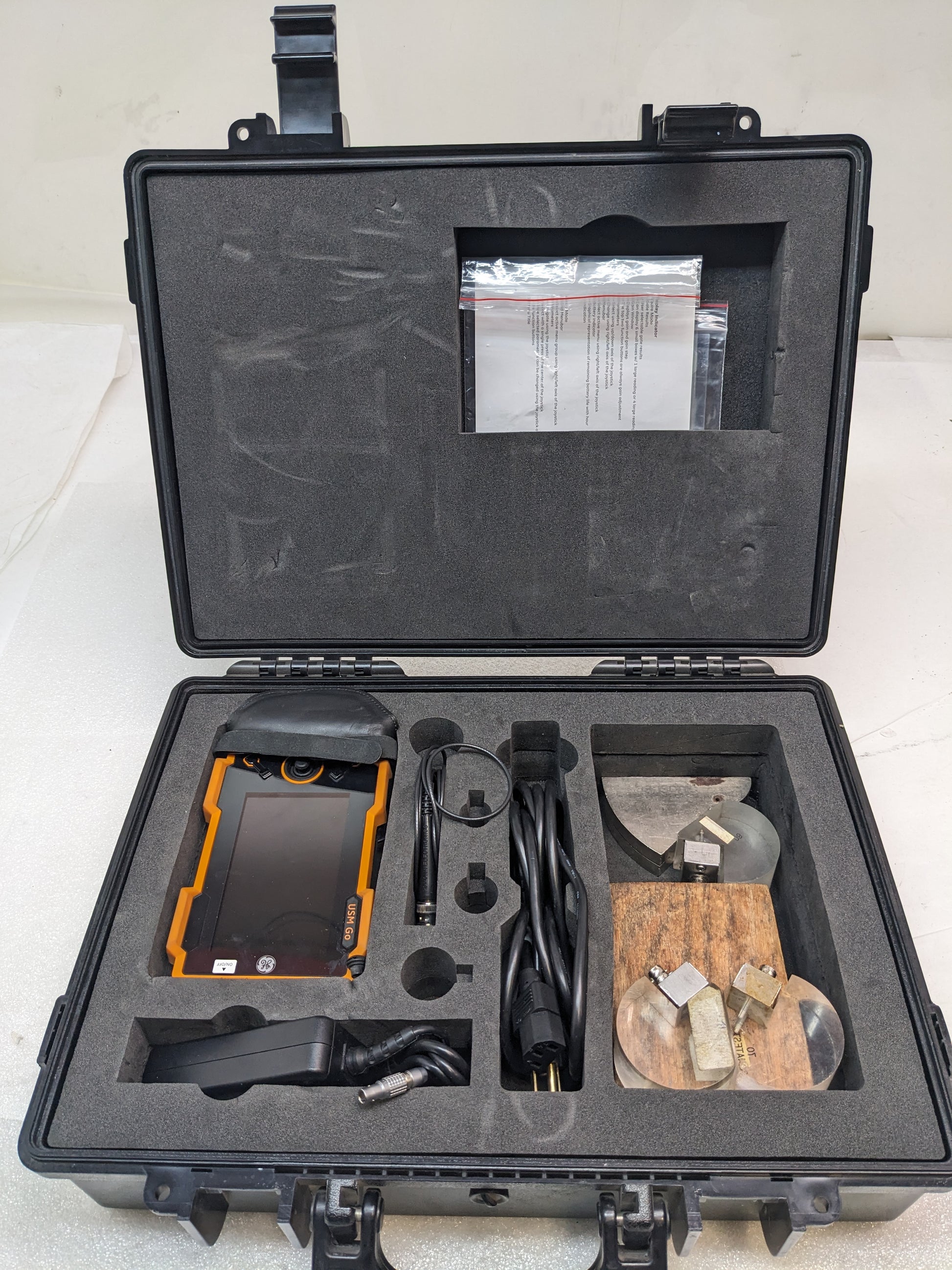

INCLUDE:

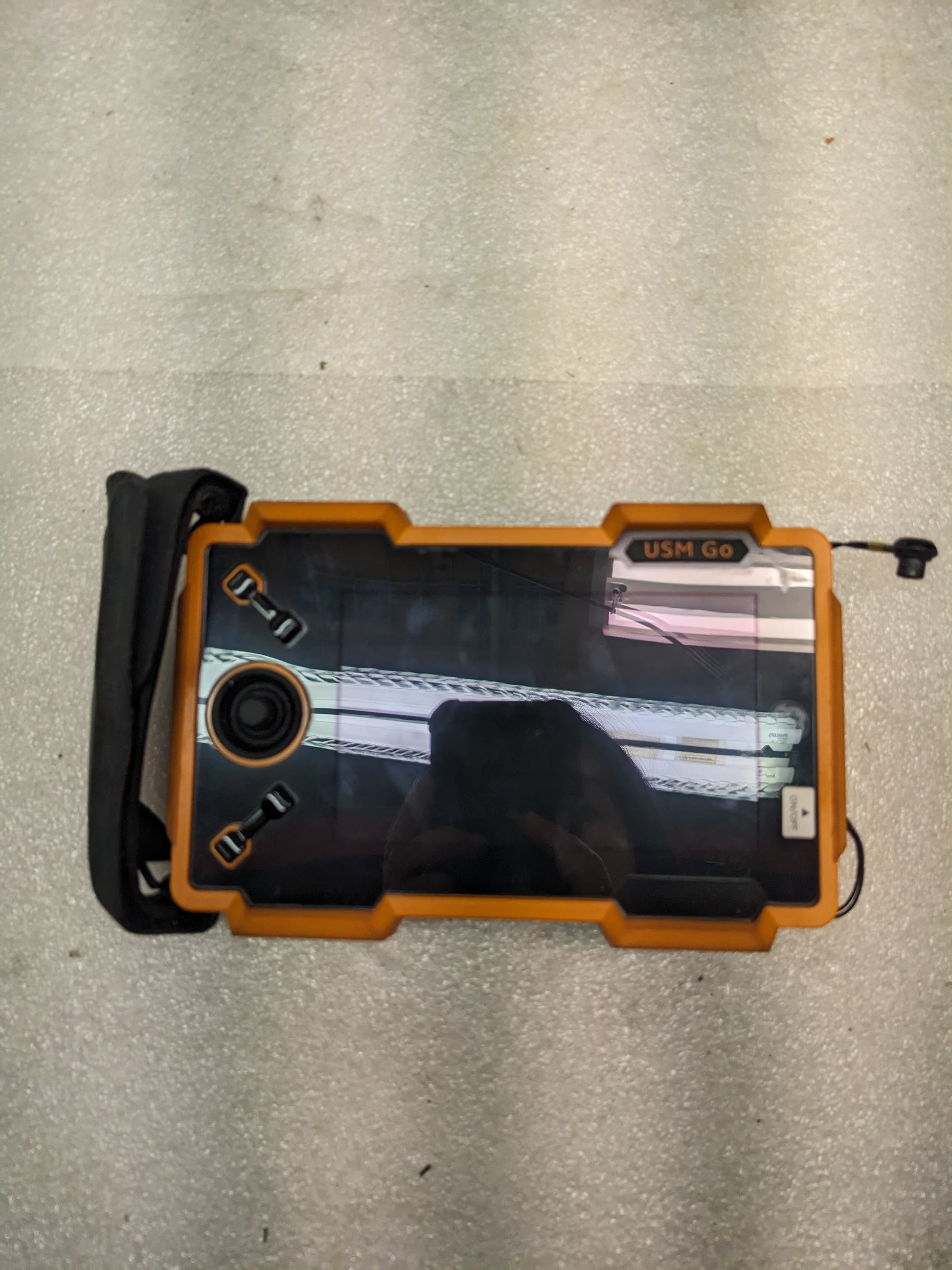

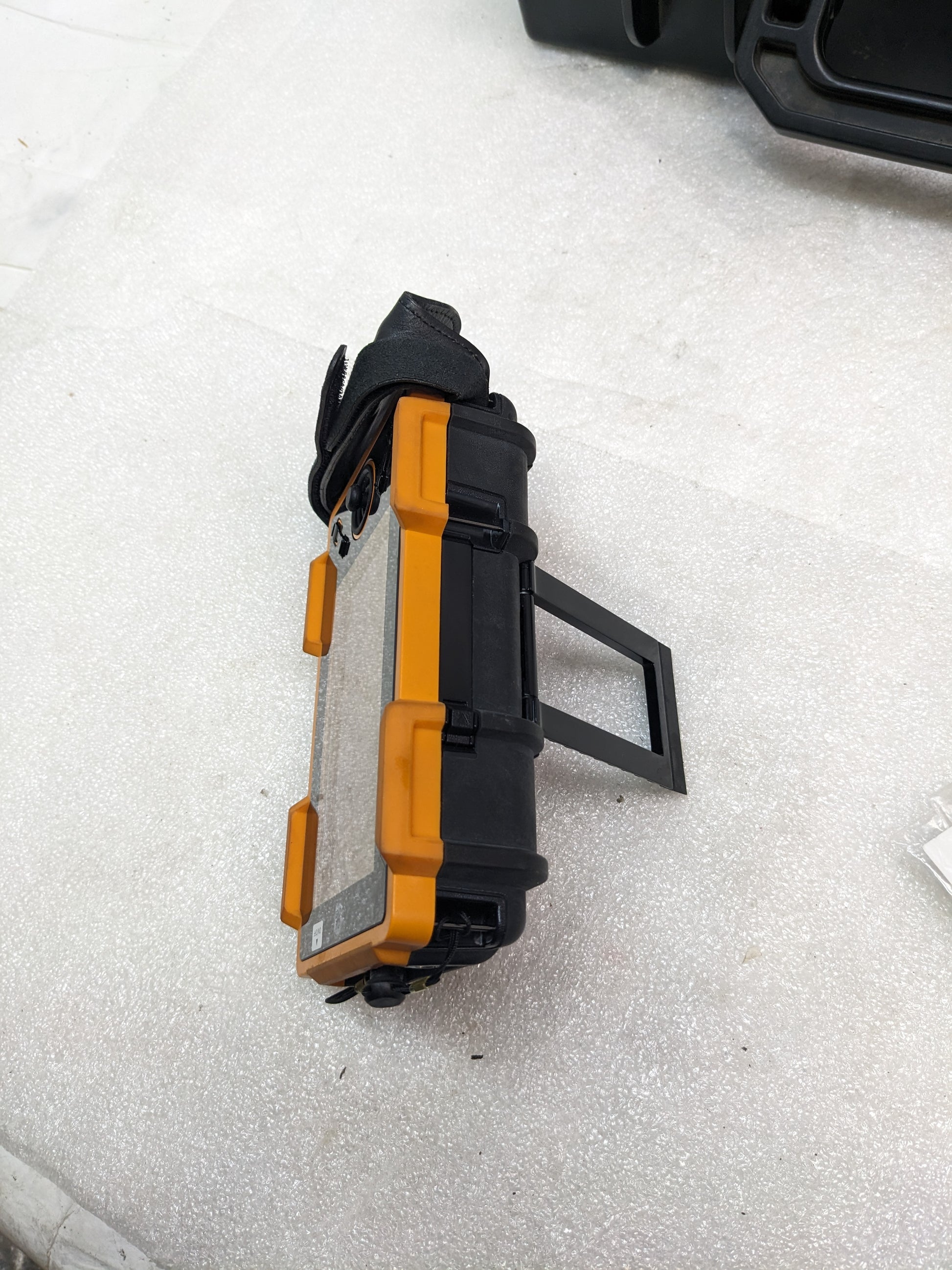

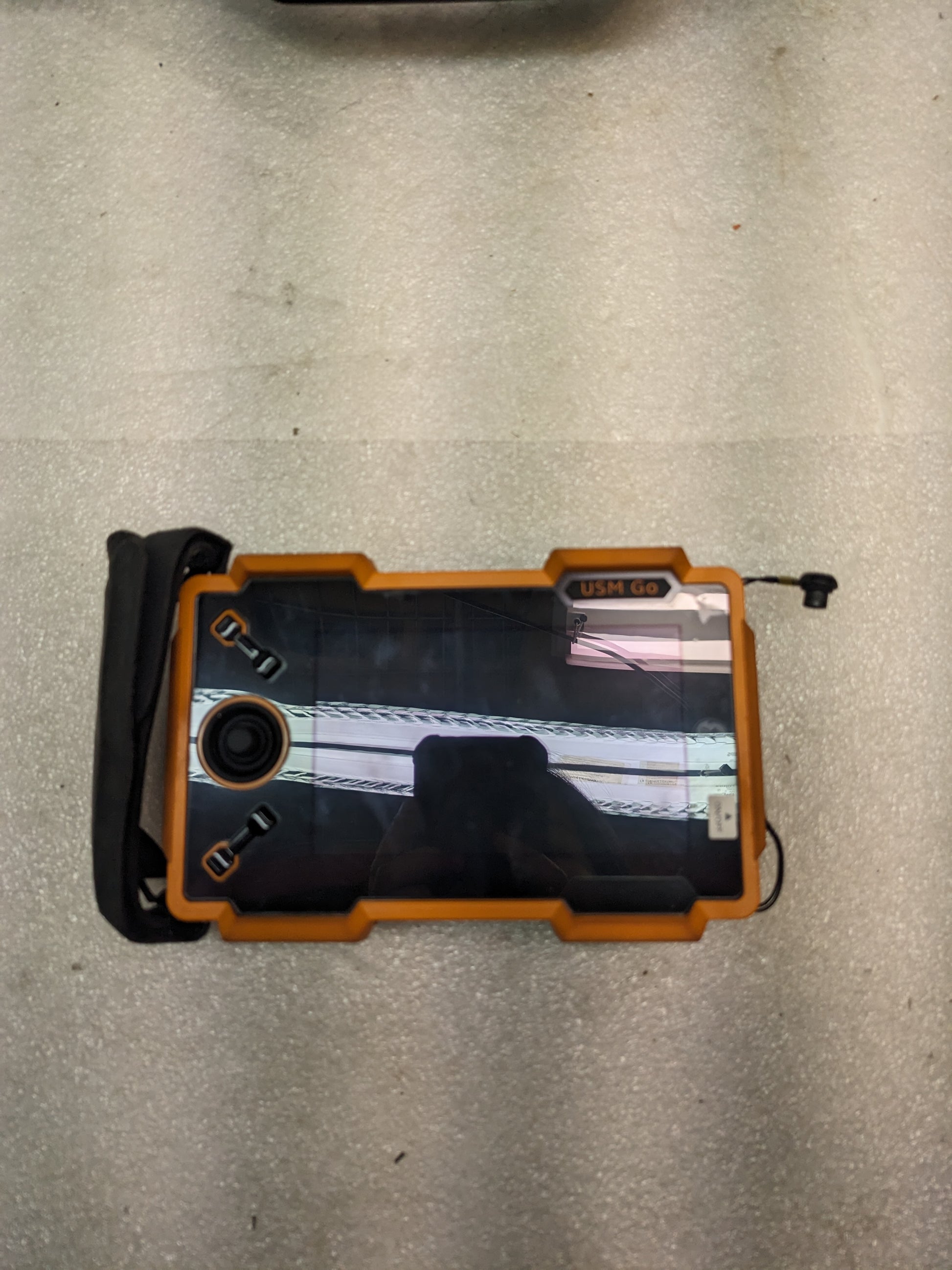

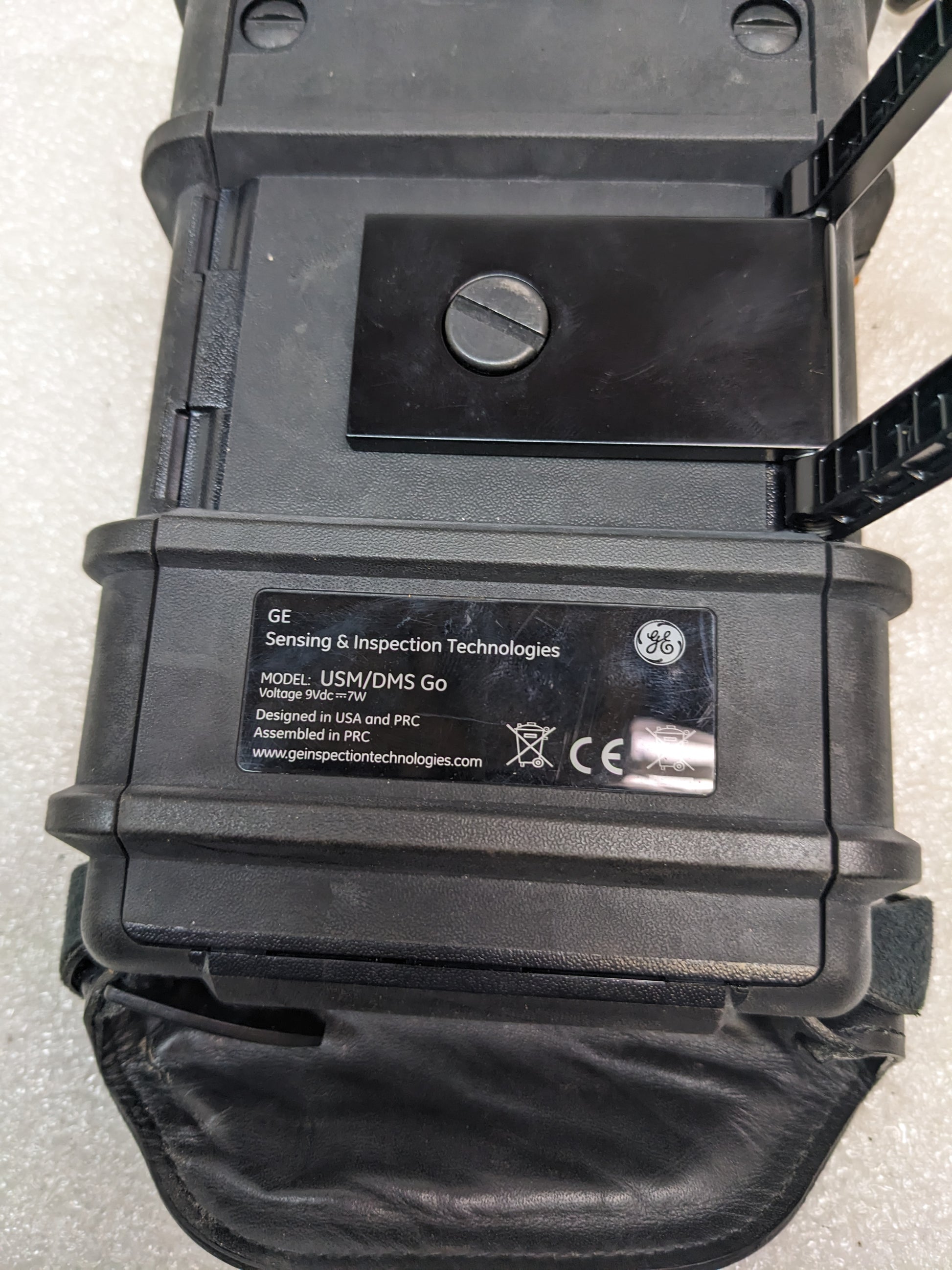

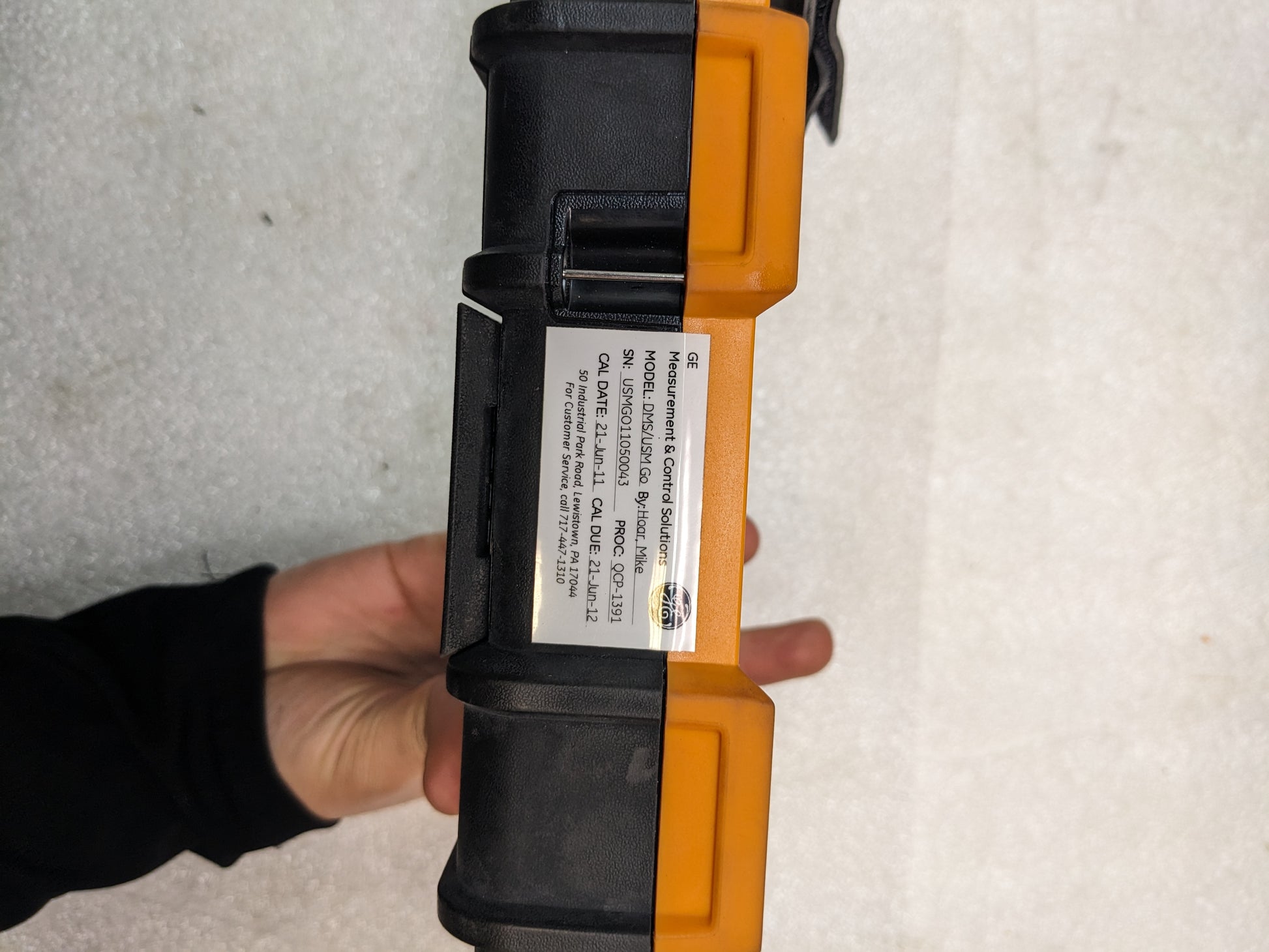

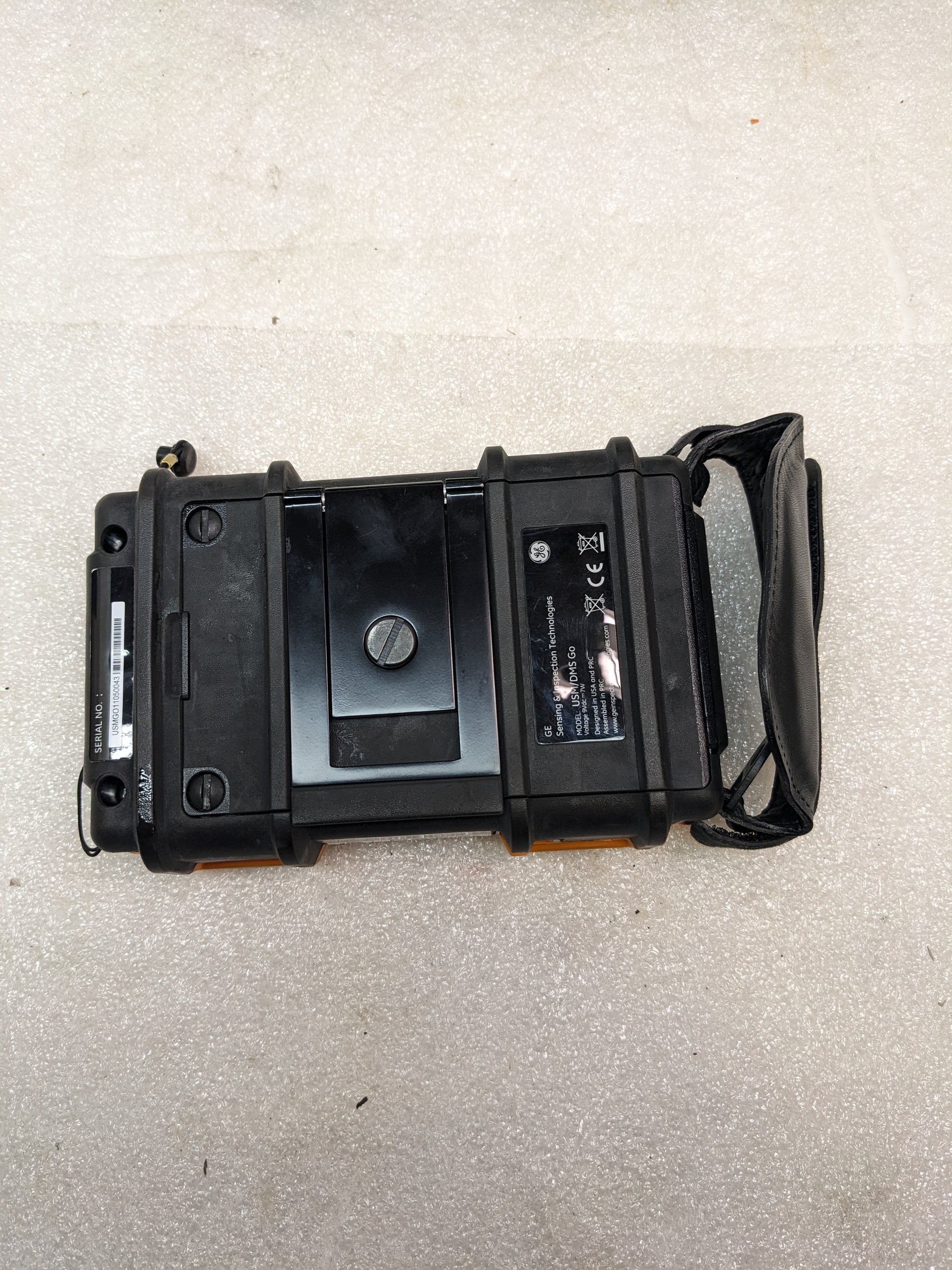

GE USM GO ULTRASONIC FLAW DETECTOR

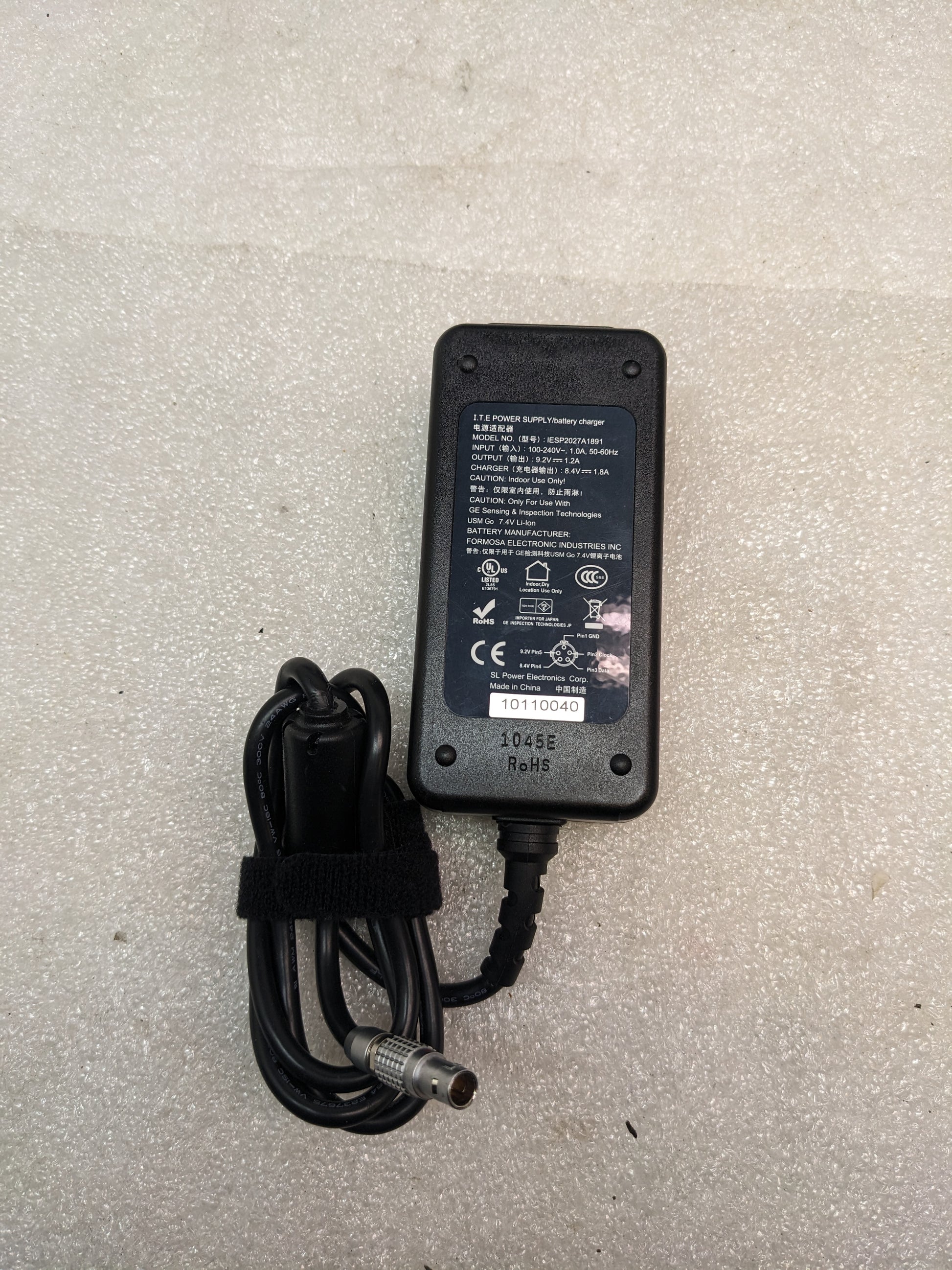

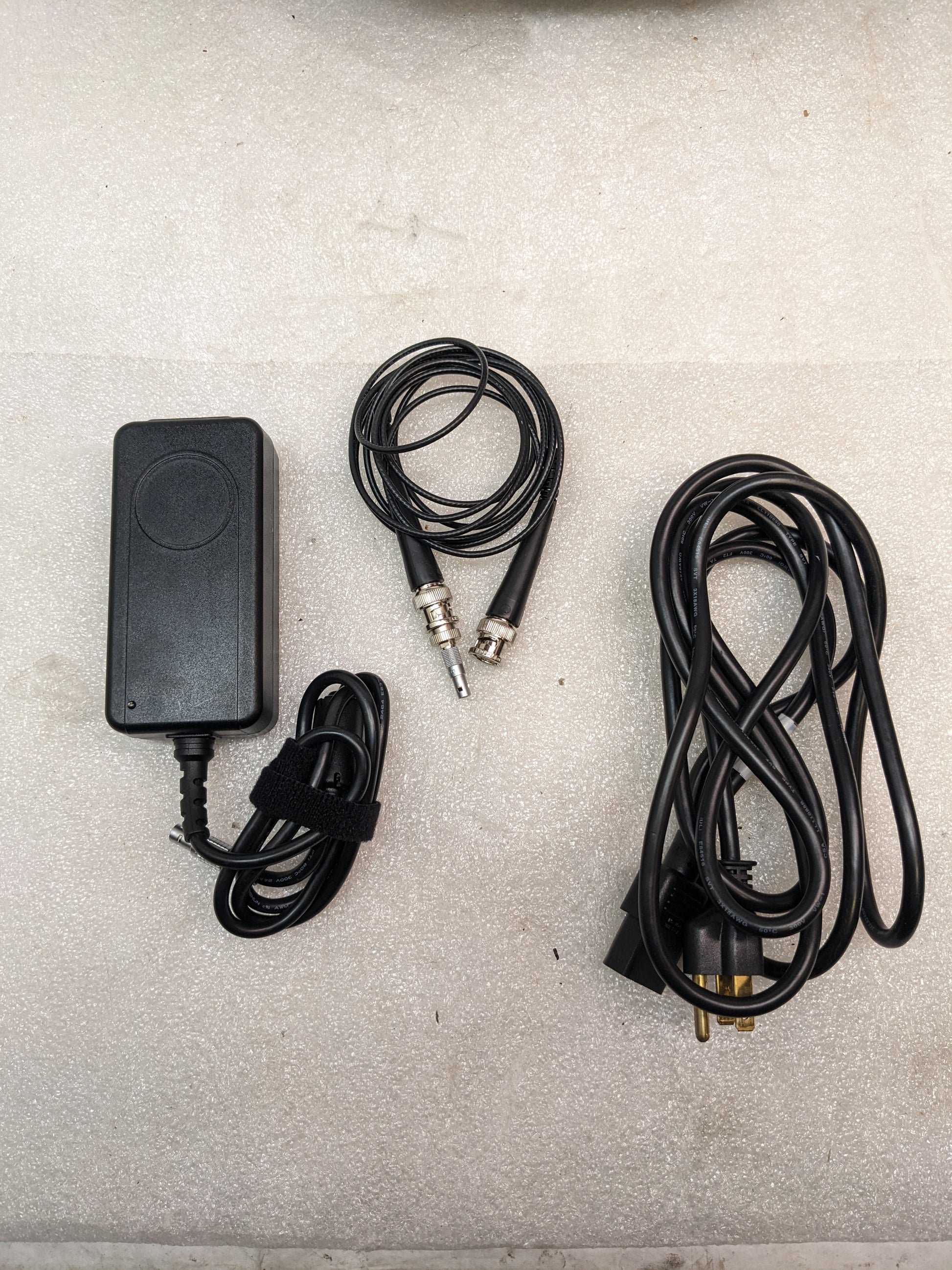

AC ADAPTER/CHARGER

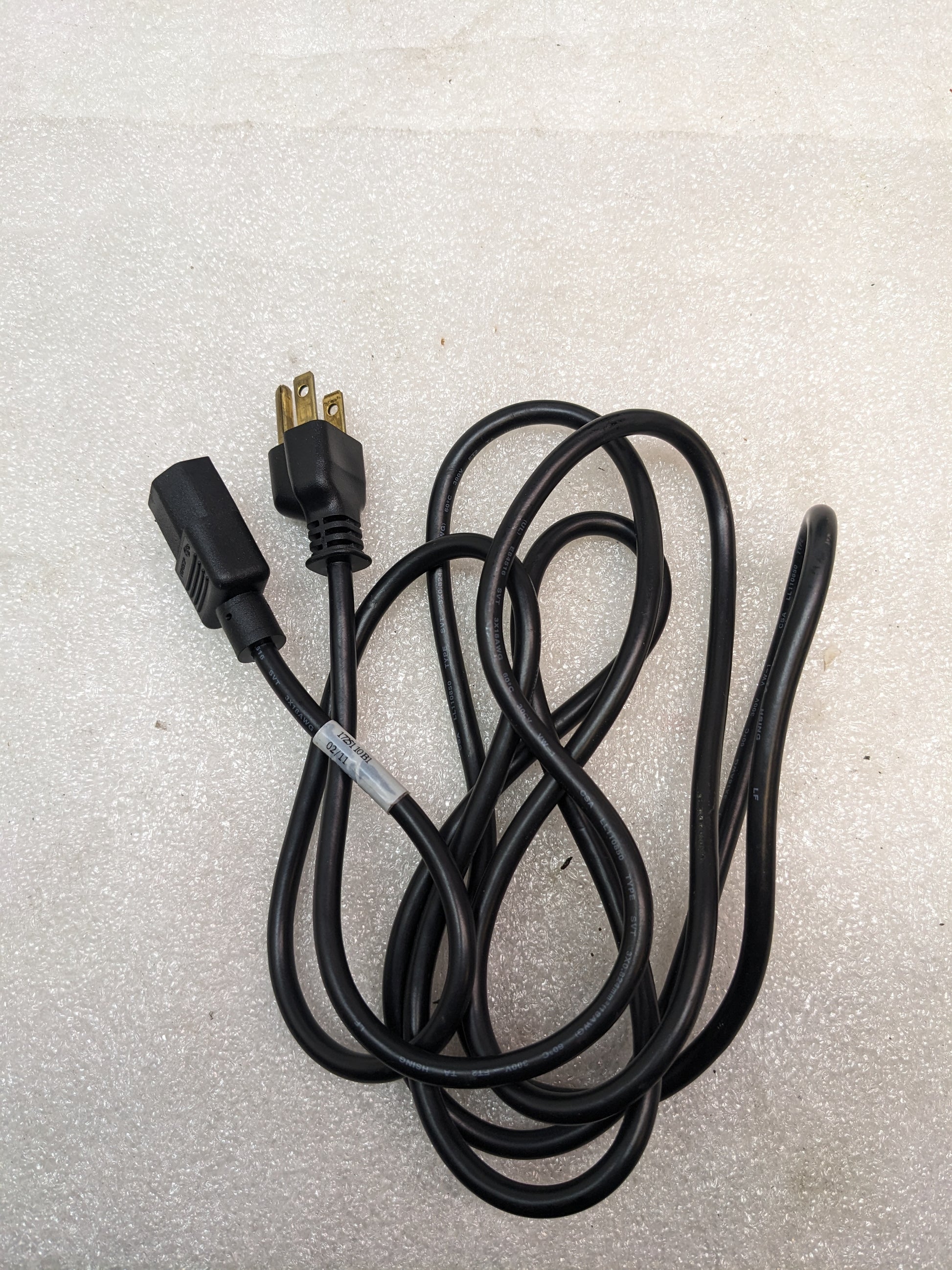

POWER CORD
USB PC INTERFACE CABLE

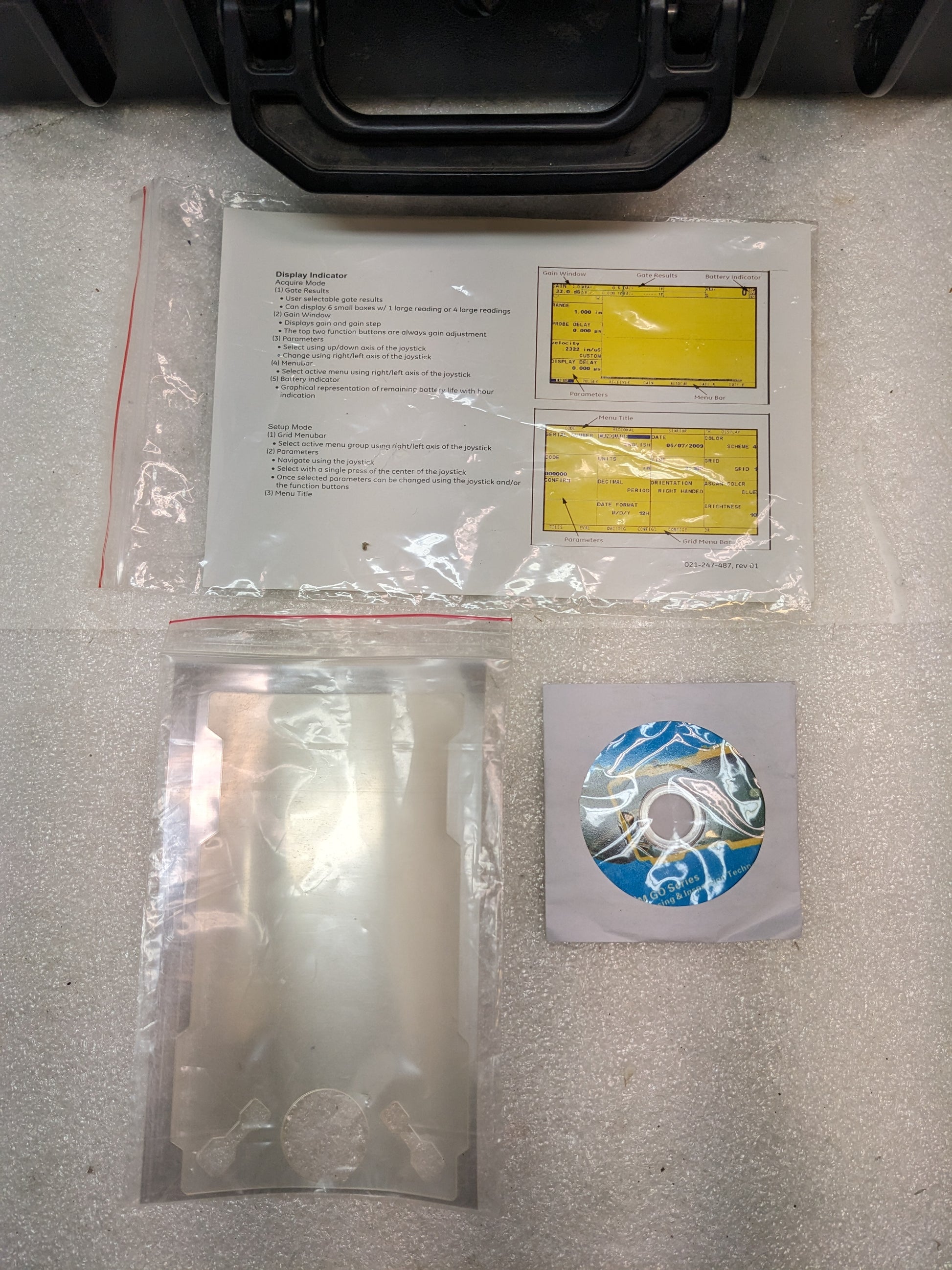

USER MANUAL ON CD-ROM

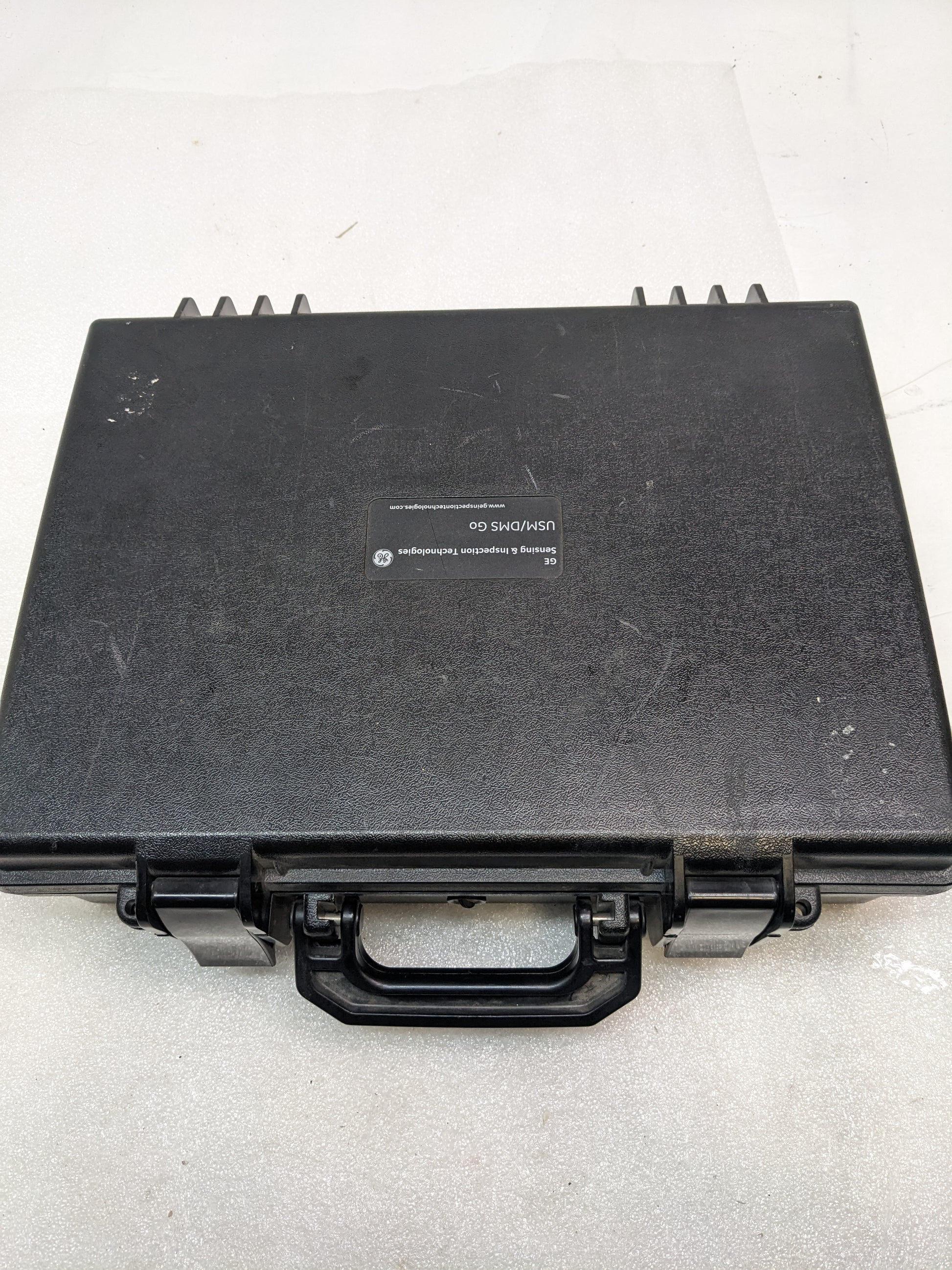

CARRYING CASE
SPECIFICATIONS:
ACTIVE AREA: WxH: 108MM X 64.8MM (4.25" X 2.55")
SCREEN DIAGONAL: 5.0"
PIXEL RESOLUTION: WxH: 800 X 480 PIXELS

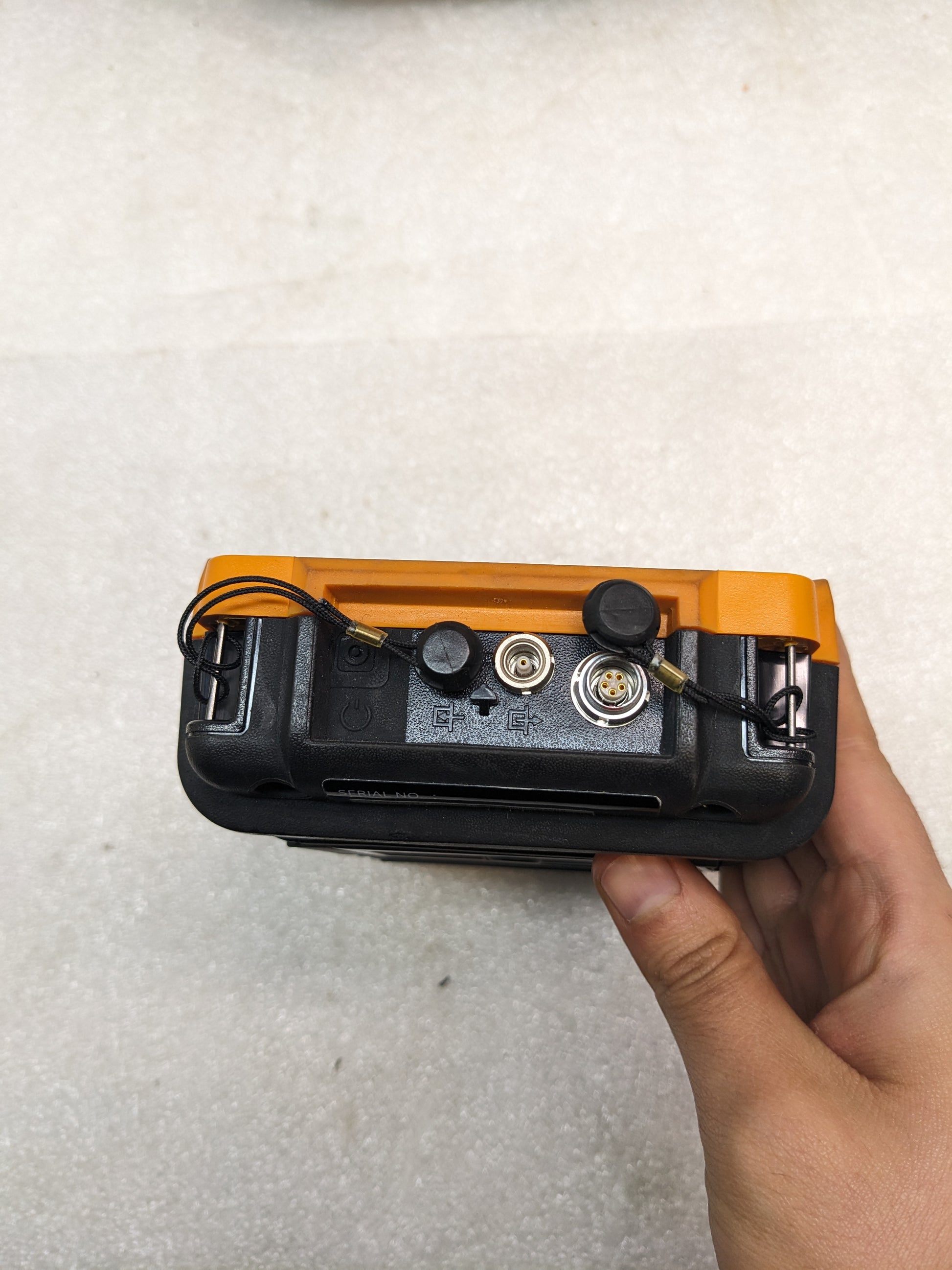

ROBE CONNECTORS: TWO LEMO-00
UT OUTPUT CONNECTOR: SAP OUTPUT, ALARM
USB INTERFACE: MICRO USB CONNECTOR
SD CARD CONNECTOR: FULL SIZE SD CARD SLOT TO ACCOMMODATE STANDARD SD CARDS
PULSER MODE: SIMULATED SPIKE STANDARD, UNI-POLAR SQUARE WAVE OPTIONAL
PULSER VOLTAGE (SQ MODE): 120 V TO 300 V WITH 10 V STEPS
PULSER WIDTH (SQ MODE): 30 NS TO 500 NS WITH 20 NS STEPS
PULSER AMPLITUDE (SPIKE MODE): LOW : 120 V HIGH: 300 V
DAMPING: 50 OR 1000 OHMS
PRF: AUTOMATICALLY OPTIMIZED BETWEEN 15 HZ TO 2000 HZ, 3 AUTOMATIC ADJUSTMENT MODES : AUTOLOW, AUTOMED, AUTOHIGH - MANUAL CONTROL OF PRF FROM 15 TO 2000 HZ
RANGE: 14016 MM AT STEEL LONGITUDINAL WAVE (557”)
DIGITAL GAIN: DYNAMIC RANGE OF 110 DB, WITH 0.2 DB STEP
ANALOG BANDWIDTH: 0.2 MHZ - 20 MHZ
FILTERS: BROAD BAND
NARROW BAND FILTERS: 1; 2; 2.25; 4.5; 10; 13; 15 MHZ
INDEPENDENT GATES: 2 GATES (A AND B), GATE B CAN SUPPORT TRIGGERING BY GATE A
RECTIFICATION: FULL WAVE (FW) POSITIVE (POS)
CAPACITY: 2 GB SD CARD. UP TO 16 GB MEMORY CARDS CAN BE USED
REPORT: JPEG AND BMP REPORTS
DATA LOGGER: OPTION FOR THICKNESS OR A-SCAN RECORDING, COMPATIBLE WITH ULTRAMATE
BATTERY: 6 HOURS BATTERY LIFE
CHARGER: “UNIVERSAL” AC (100-240 V, 50-60 HZ) MEETS CCC, CE, UL, CSA AND PSE REQUIREMENTS
SIZE: 175 MM X 111 MM X 50 MM (6.8” X 4.3” X 1.9”)
WEIGHT: 845 G (1.87 LB) WITH THE BATTERY
LANGUAGES: BULGARIAN, CHINESE, CZECH, DUTCH, ENGLISH, FRENCH, GERMAN, HUNGARIAN, ITALIAN, JAPANESE, PORTUGUESE, POLISH, RUSSIAN AND SPANISH
DAMP HEAT AND HUMIDITY (STORAGE): 10 CYCLES: 10 HRS AT 60°C (140°F) DOWN TO 30°C (86°F), 10 HRS AT 30°C (86°F) UP TO 60°C (140°F), TRANSITION WITHIN 2 HRS, 507.4
TEMPERATURE SHOCK (STORAGE): 3 CYCLES: 4 HRS AT –20°C (-4°F) UP TO 60°C (140°F), 4 HRS AT 60°C (140°F), TRANSITIONS WITHIN 5 MINUTES, 503.4 PROCEDURE II
VIBRATION: 514.5-5 PROCEDURE I, ANNEX C, FIGURE 6, GENERAL EXPOSURE: 1 HR EACH AXIS
SHOCK: 6 CYCLES EACH AXIS, 15 G, 11 MS HALF SINE, 516.5 PROCEDURE I
OPERATING TEMPERATURE RANGE: 0°C TO 55°C (32 TO 131°F)
STORAGE TEMPERATURE RANGE: -20°C TO 60°C (-4 TO 140 °F) WITH BATTERY, 24 HRS
