FOR SALE IS ONE (1)

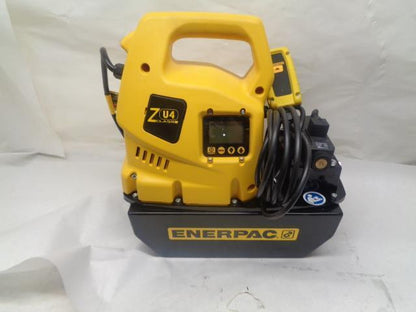

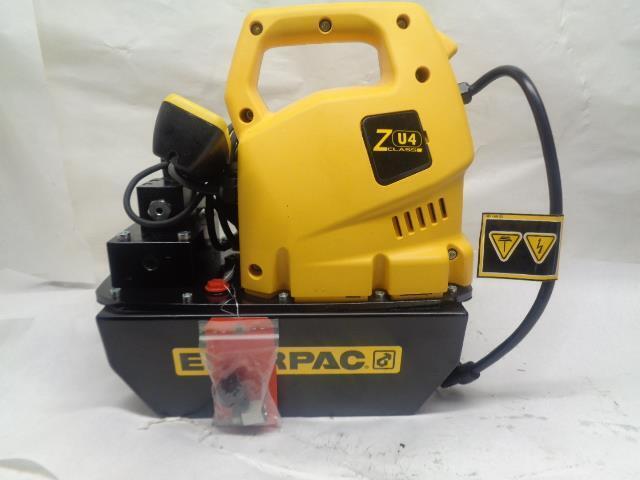

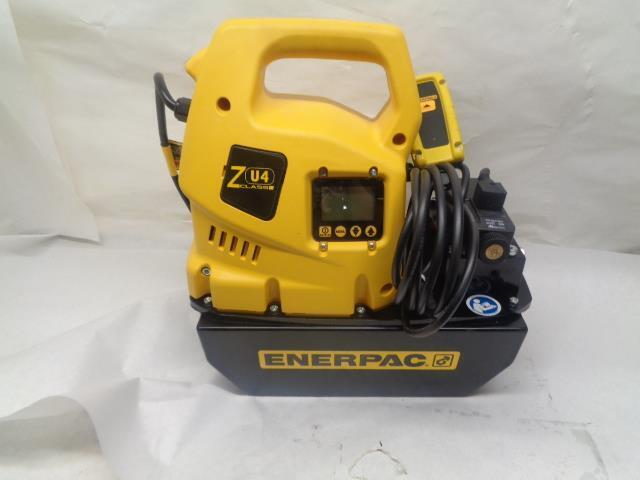

NEW ENERPAC ELECTRIC HYDRAULIC PUMP ZU4108D8 1.7HP 115V
VALVE IS NEW AND UNUSED IN GOOD CONDITION. DOES HAVE COSMETIC WEAR FROM STORAGE AND HANDLING. ONLY COMES WIHT WHAT IS PICTURED, SEE PICS FOR MORE INFO.
Specifications
Units:ImperialMetric
Maximum Operating Pressure (psi)
10,000
Cylinder Compatability
Single-acting
Reservoir Capacity (in3)
416
Usable Oil Capacity (gal)
2
Maximum Flow at Rated Pressure
60 in3/min
Output Flow Rate (in3/min) 100 psi
700
Output Flow Rate (in3/min) 700 psi
535
Output Flow Rate (in3/min) 5000 psi
76
Output Flow Rate (in3/min) 10000 psi
60
Motor Size (hp)
1.7
Motor Hertz
50/60 Hz
Motor Phases
1 Ph
Motor Voltage
115 V
Duty Cycle
Intermittent
Valve Function
Advance / Retract
Valve Operation
Solenoid

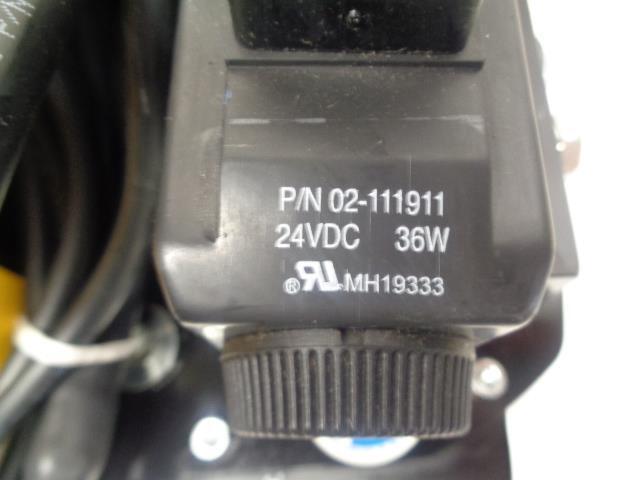

Solenoid Valve Voltage
24 VCC
Valve Type
3-way, 2-position
Valve Model
VE32D
Power Source
Electric
Pump Operation
Dump
Pump Control
Pendant
Motor Electrical Specification
115 V, 1 Ph, 50/60 Hz
Sound Level (dBa)
85 - 90
Relief Valve Adjustment Range (psi)
2,000 - 10,000
Weight (lbs)
73
Enerpac ZU Series Electric Hydraulic Pumps provide a high power to weight ratio in a portable and durable format. They feature our Z-Class technology pump platform - widely recognized as the market leader in industrial hydraulic pump technology. The high-flow rates and valve and accessory options allow you to handle a huge number of projects, including long-stroke and multiple cylinder applications.
- Patented Z-Class pump technology provides high by-pass pressures for increased productivity—important in applications using long hose runs and high pressure-drop circuits, like heavy lifting or certain double-acting tools. Enerpac ZU4 Hydraulic Pumps are built to power small to large-sized cylinders or hydraulic tools, or wherever highspeed, intermittent duty, remote hydraulic power is needed.
- Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
- Powerful 1.7 hp universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
- High-strength, molded composite shroud protects motor and electronics, while providing an ergonomic, non-conductive handle for easy transport
- Low-voltage pendant provides additional safety for the operator (remote control units)
- Pro Electric:

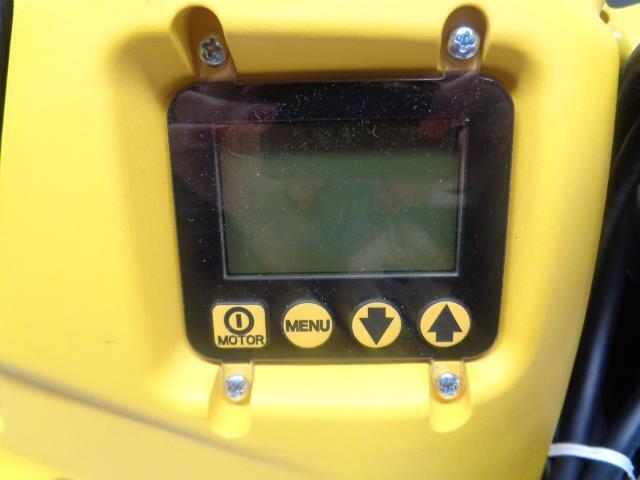

- LCD readout provides pressure and a number of diagnostic and readout capabilities never before offered on a portable electric pump
- Pump usuage information, hour and cycle counts
- self-test, diagnostic and read-out capabilities
- pressure readout and auto-mode pressure setting
