Name: EATON TANDEM PUMP/PRESSURE COMPENSATED PISTON PUMP 429AK00110C/421AK02277C H1
Brand: BRR Tires & Automotive
SKU: EB-385680079683
Price: 4553.95 USD
Availability: InStock

Description

FIRST, THANK YOU FOR LOOKING AT ANOTHER ONE OF OUR GREAT AUCTIONS. PLEASE REALIZE THAT WE TRY TO MAKE EVERY TRANSACTION WITH US AN EXCELLENT ONE. OCCASIONALLY, WE MAKE A MISTAKE. IF YOU EVER EXPERIENCE A LESS THAN SATISFACTORY SITUATION WITH US, PLEASE LET US KNOW IMMEDIATELY SO THAT WE CAN FIND A METHOD TO RECTIFY YOUR CONCERNS.

FOR SALE IS ONE (1)

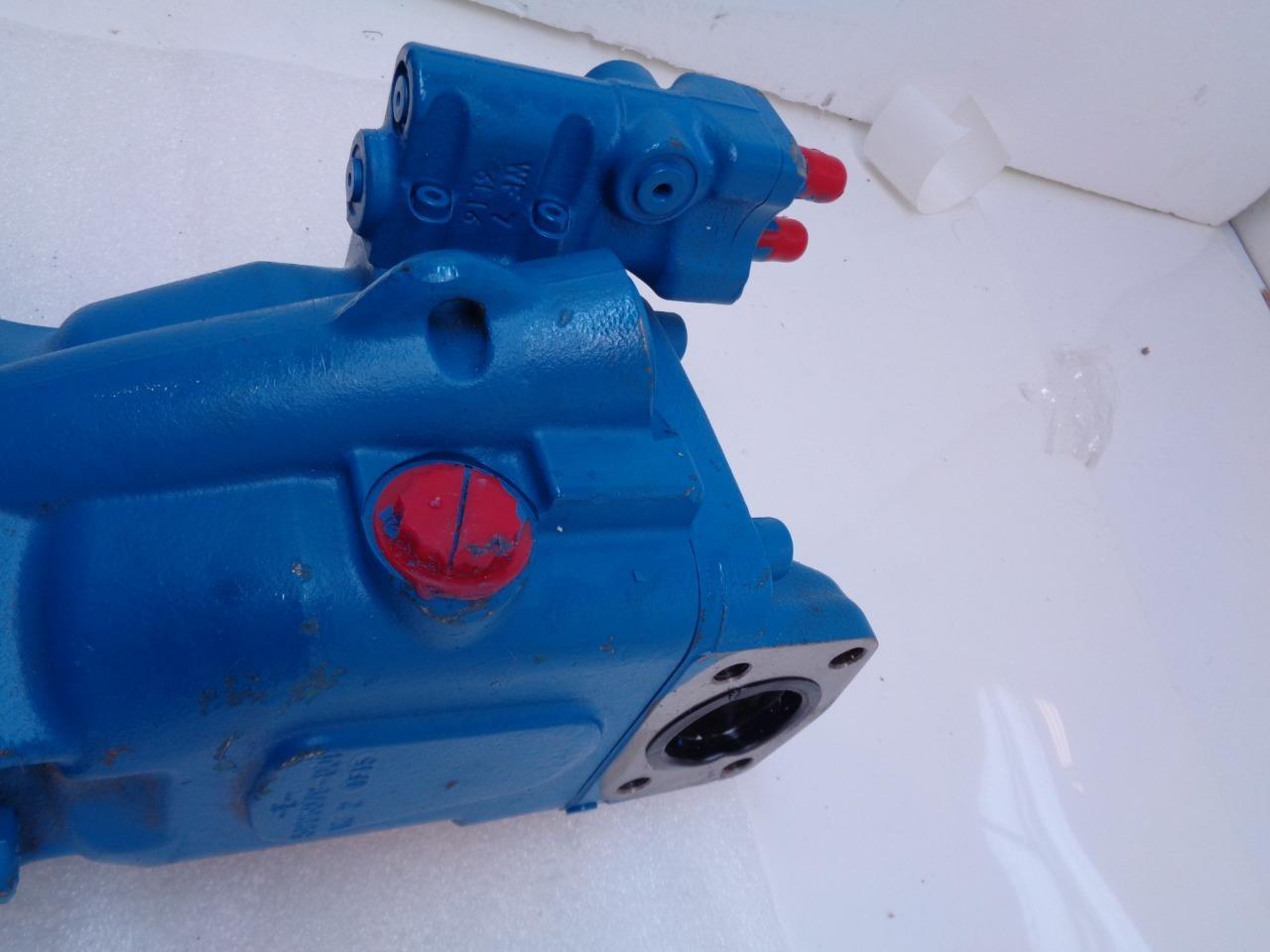

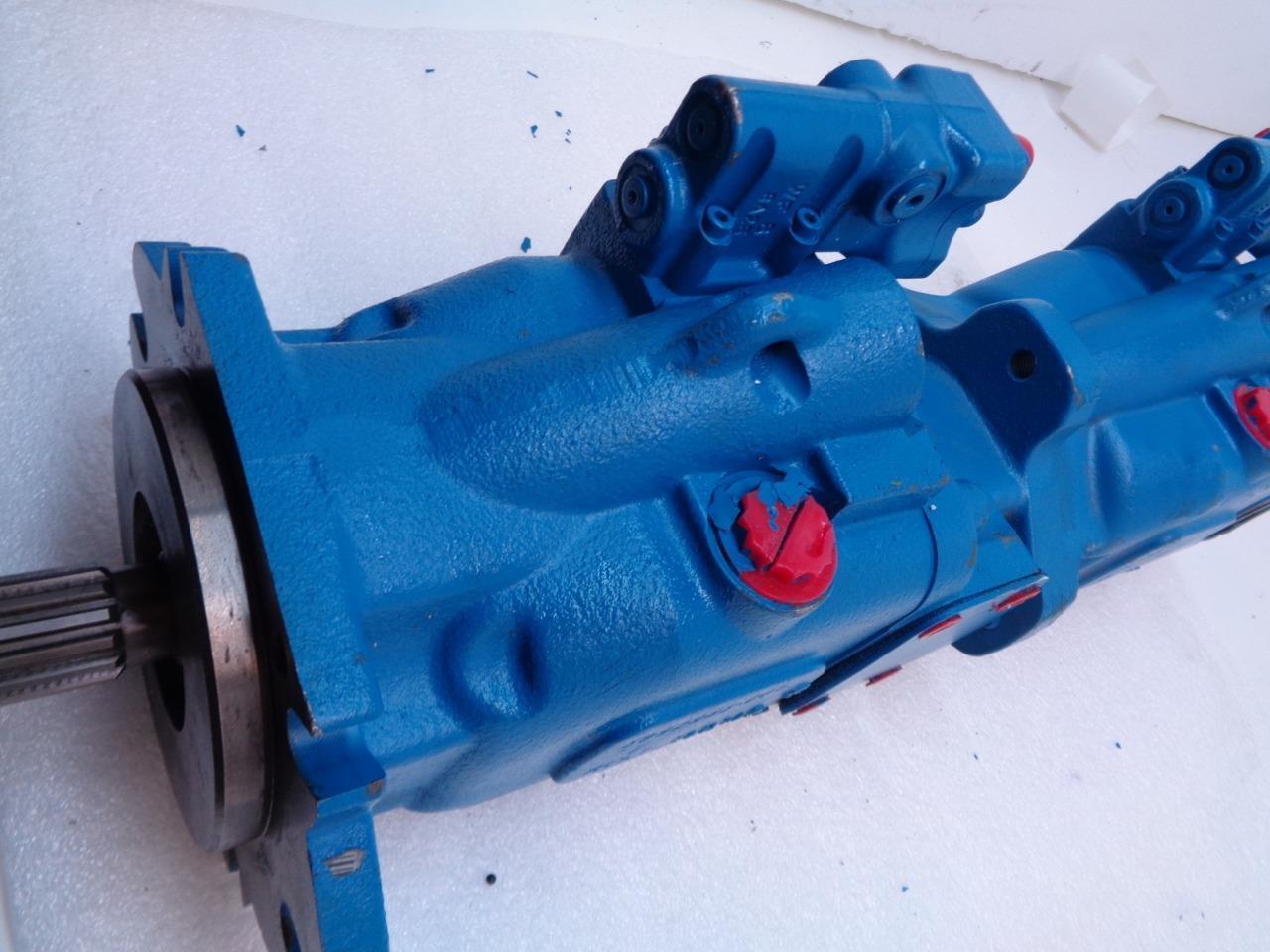

EATON TANDEM PUMP/PRESSURE COMPENSATED PISTON PUMP 429AK00110C/421AK02277C NEW

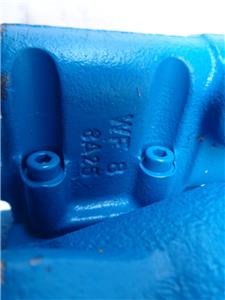

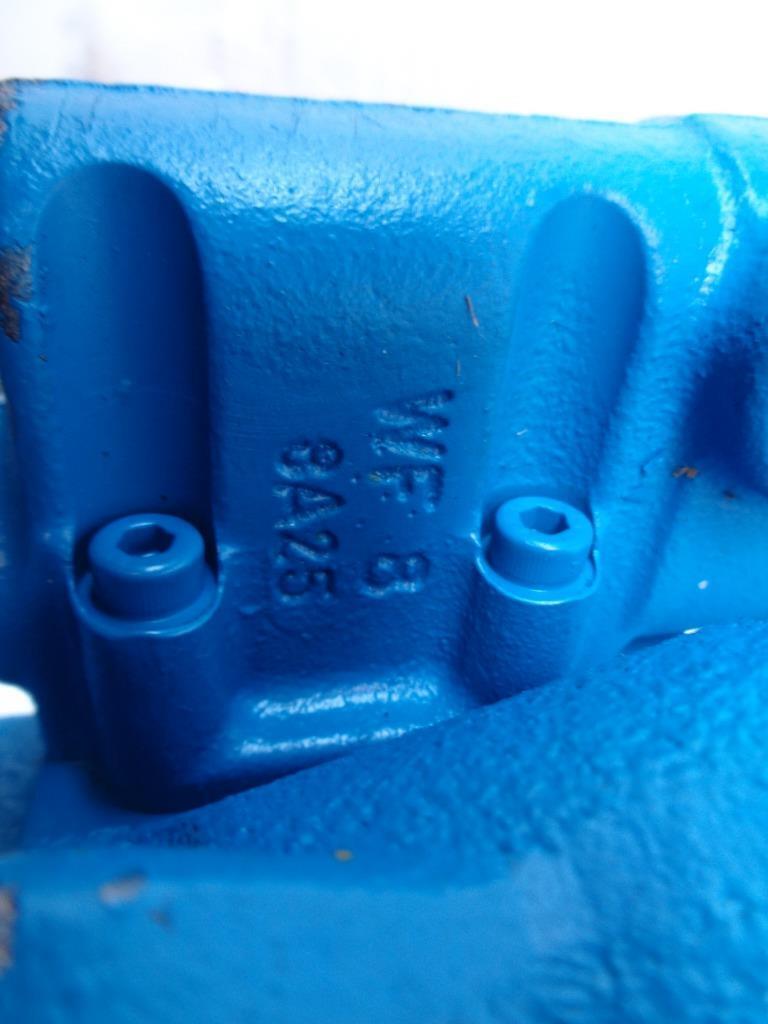

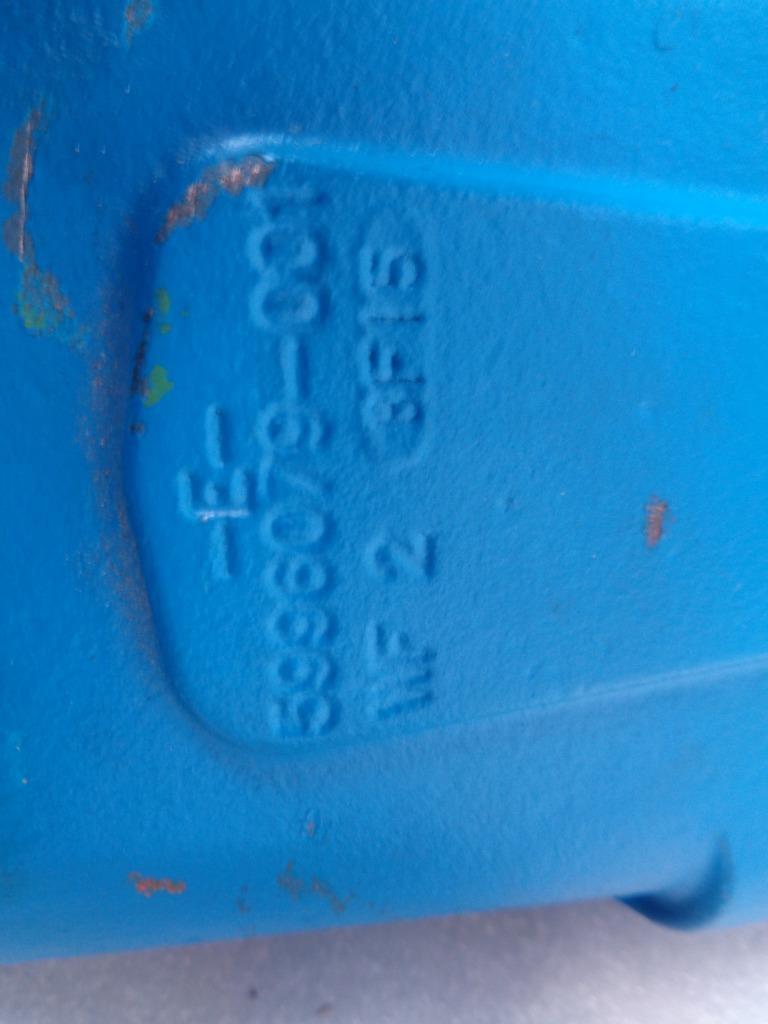

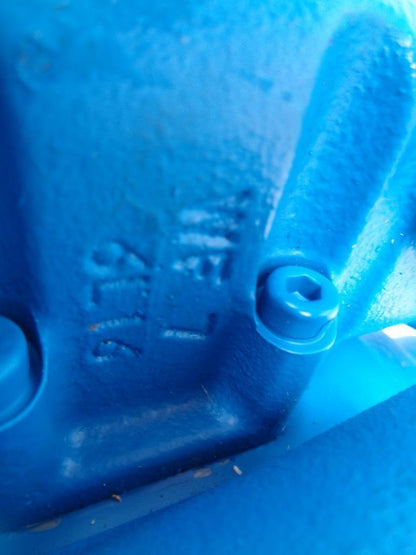

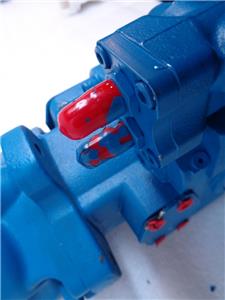

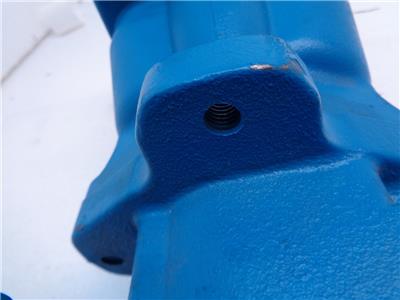

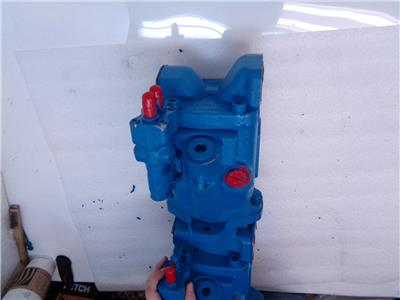

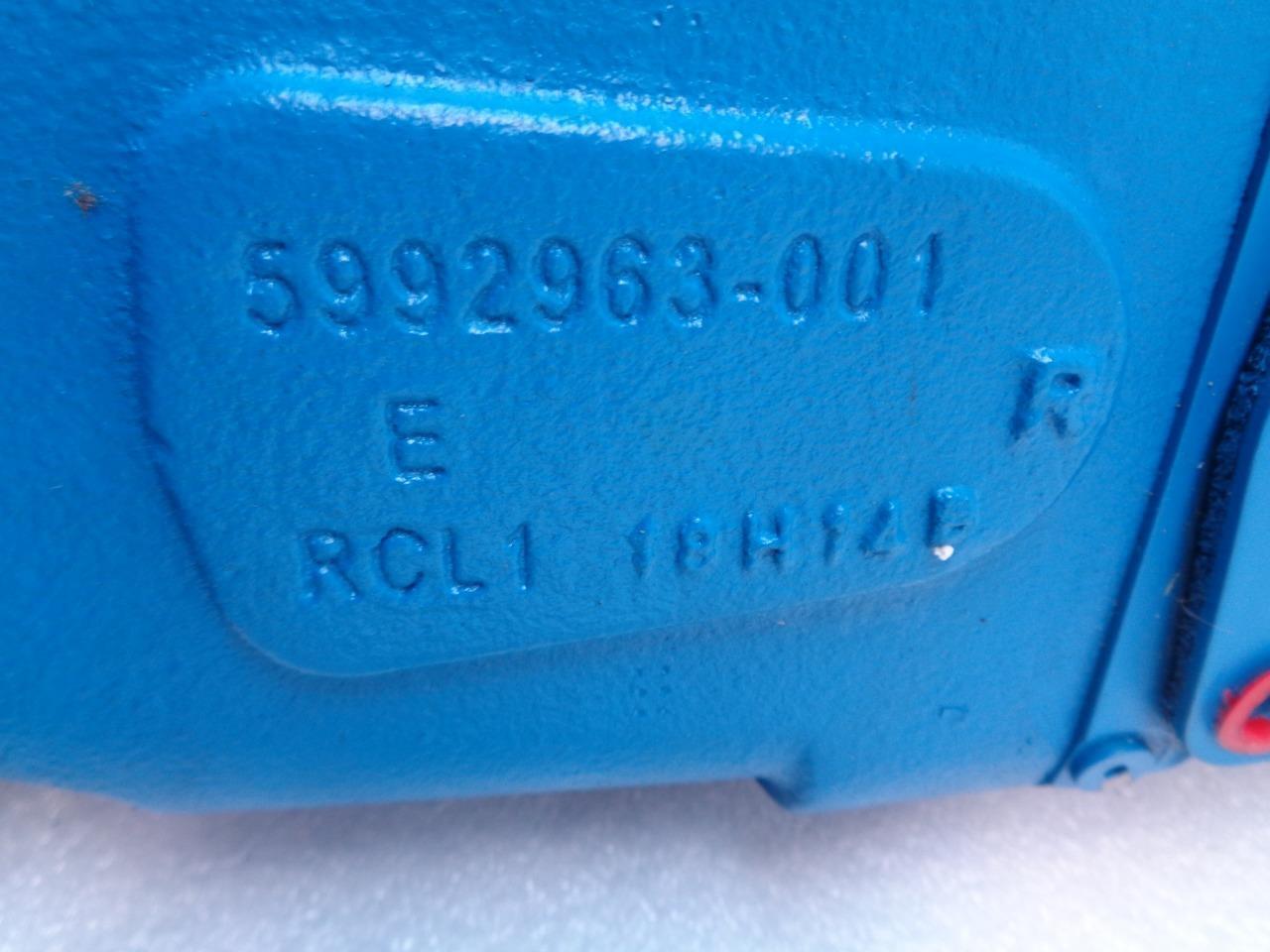

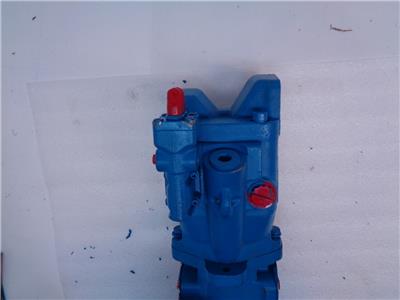

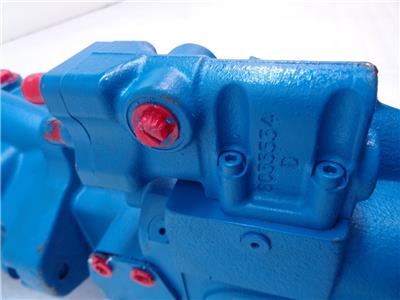

ITEM IS NEW. DOES NOT COME IN ORIGINAL BOX/ PACKAGING. HAS SOME SCRUFFS/ SCRATCHES FROM HANDLING AND STORAGE. COMES ONLY WITH WHAT IS PICTURED. SEE PICTURES FOR MORE DETAILS.

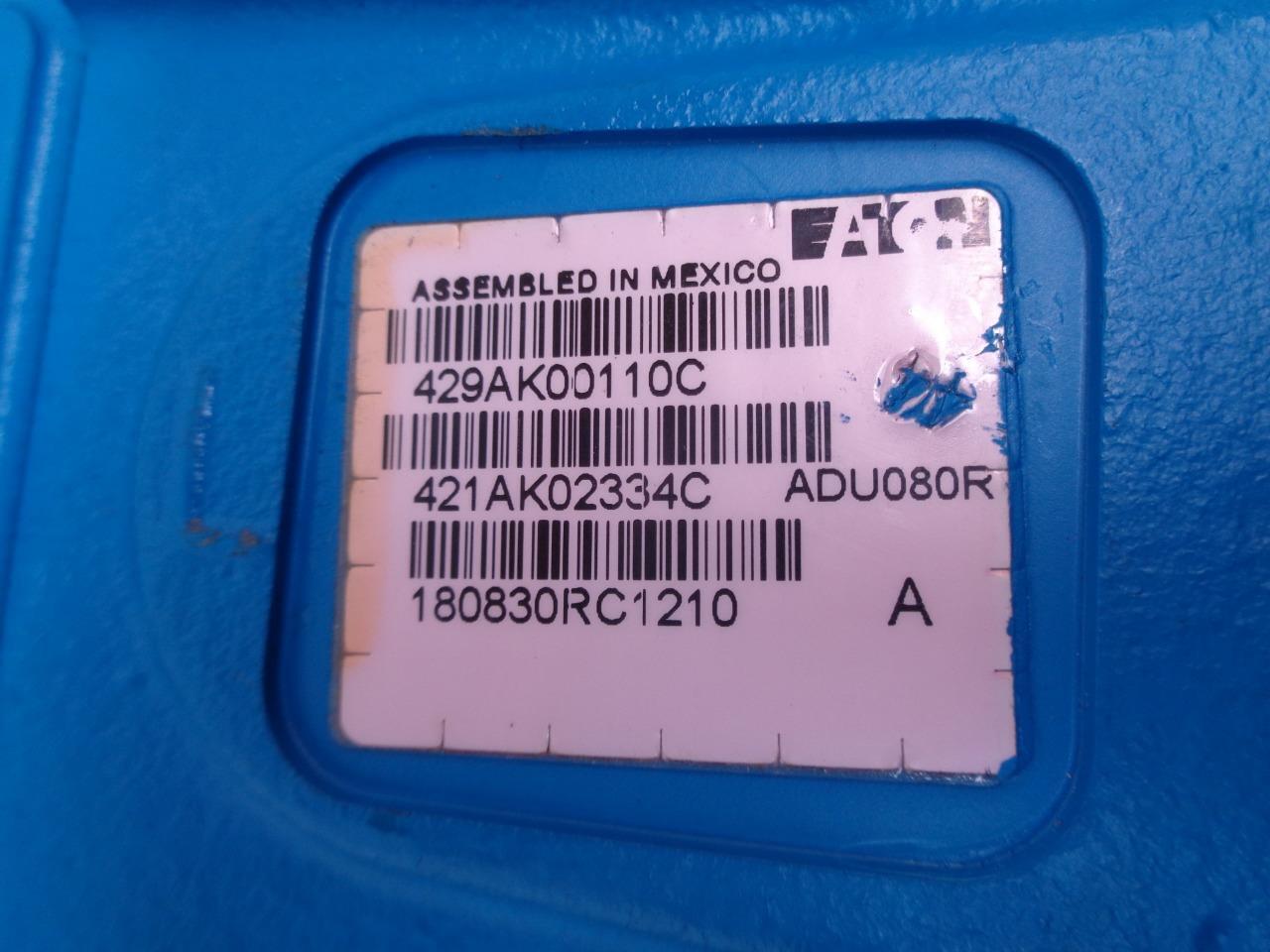

PART NUMBER: 429AK00110C/421AK02277C

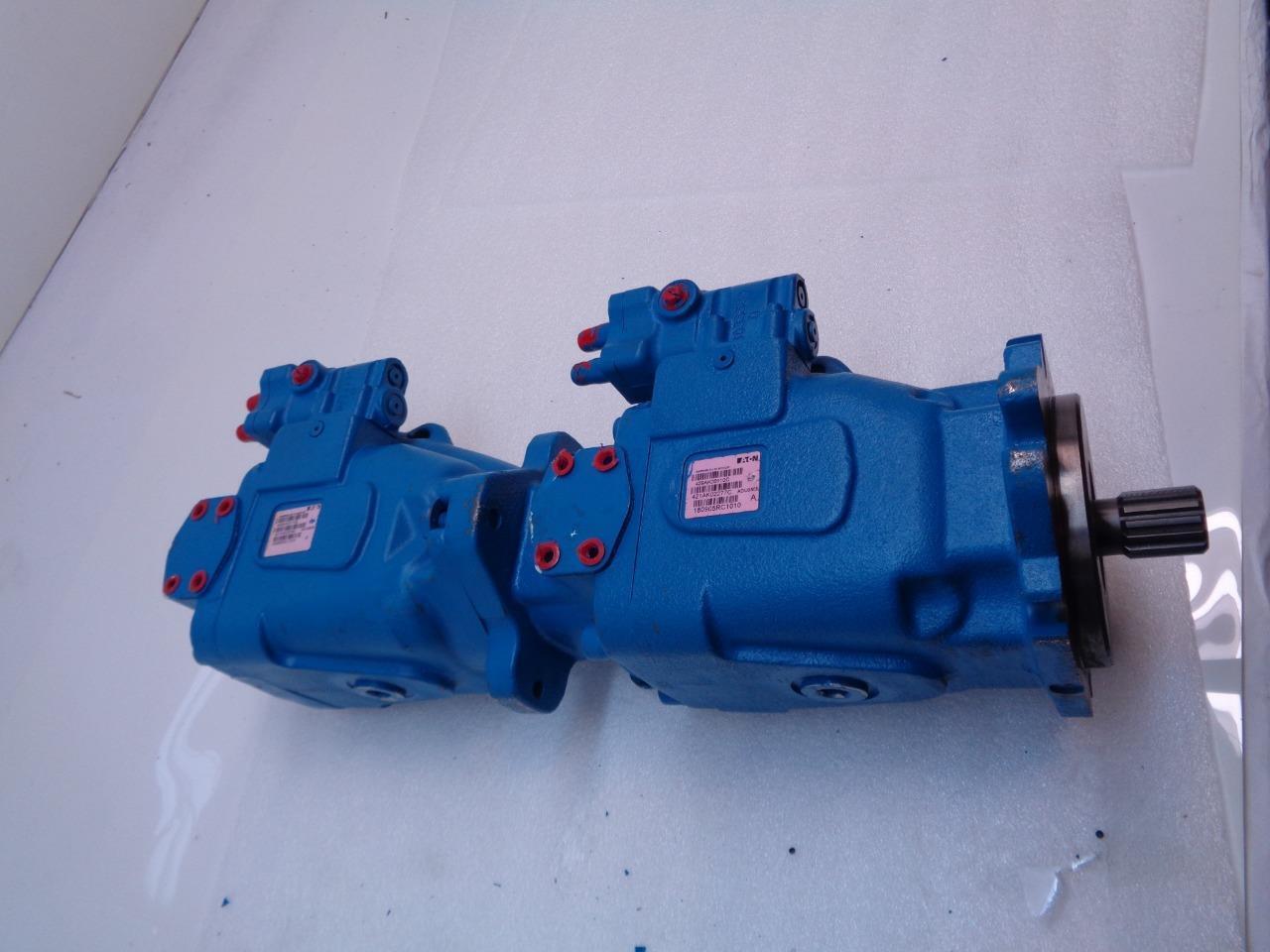

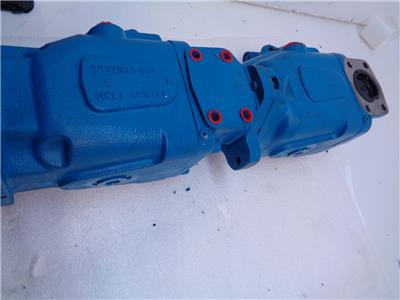

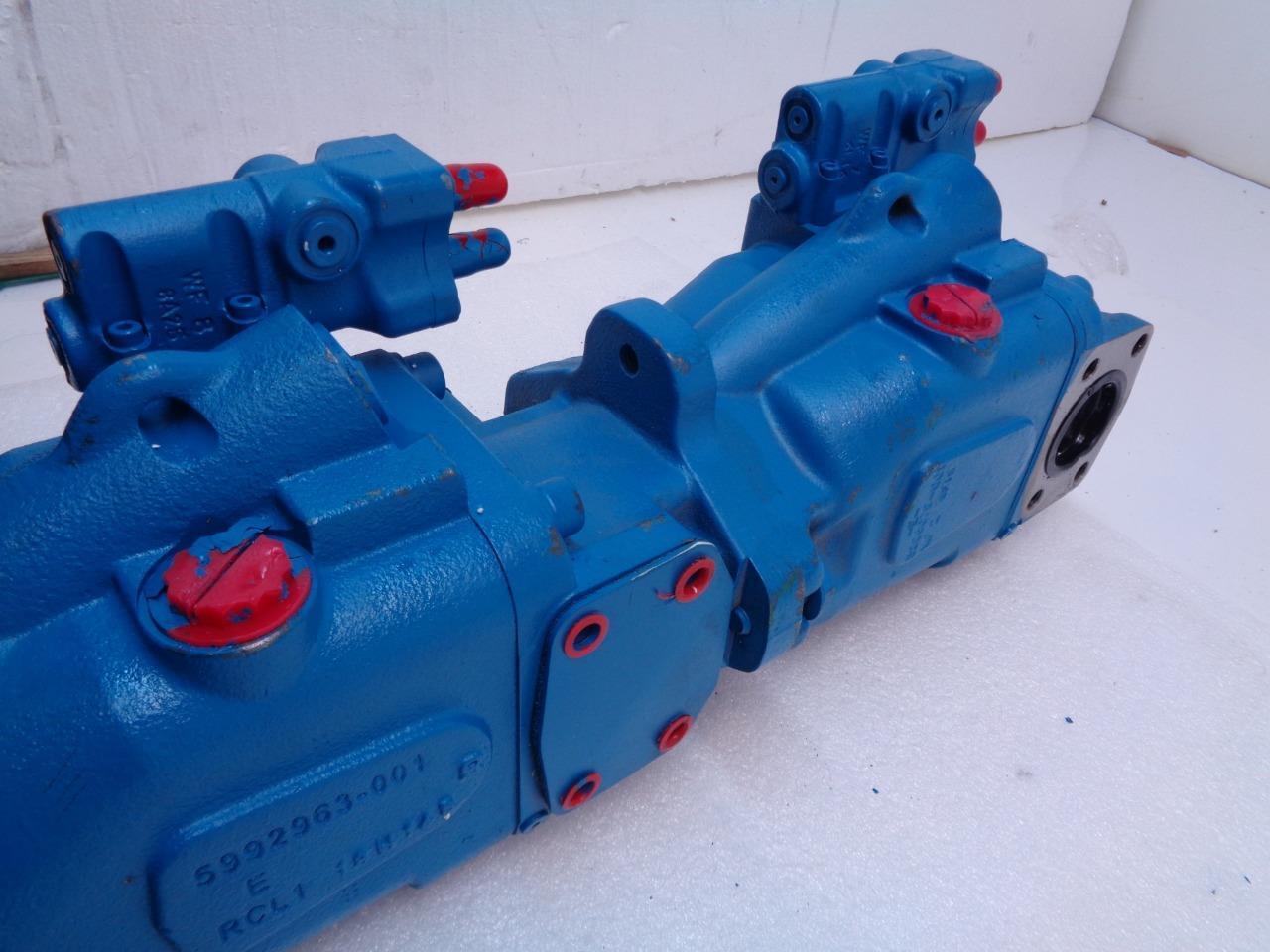

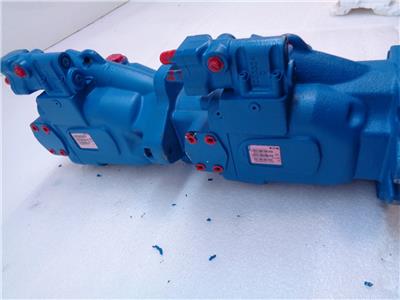

THESE ARE TWO PUMPS BY EATON THAT ARE ATTACHED. ONE IS A PRESSURE COMPENSATED/PRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP. THE OTHER IS A 420 TANDEM PUMP

SPECIFICATIONS:

CODE TITLE ADU PRESSURE COMPENSATED/PRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP

DISPLACEMENT 080 80,0 CM3/R [4.88 IN3/R]

INPUT SHAFT ROTATION R RIGHT-HAND ROTATION (CW) RIGHT SIDE SUCTION PORT, LEFT SIDE PRESSURE PORT

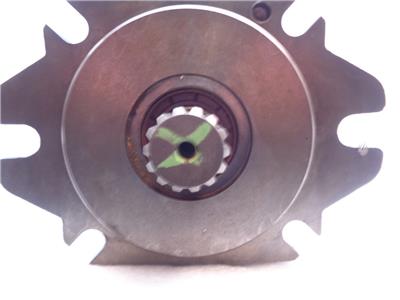

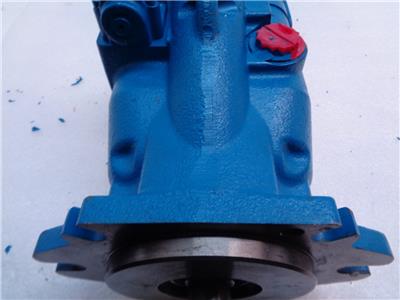

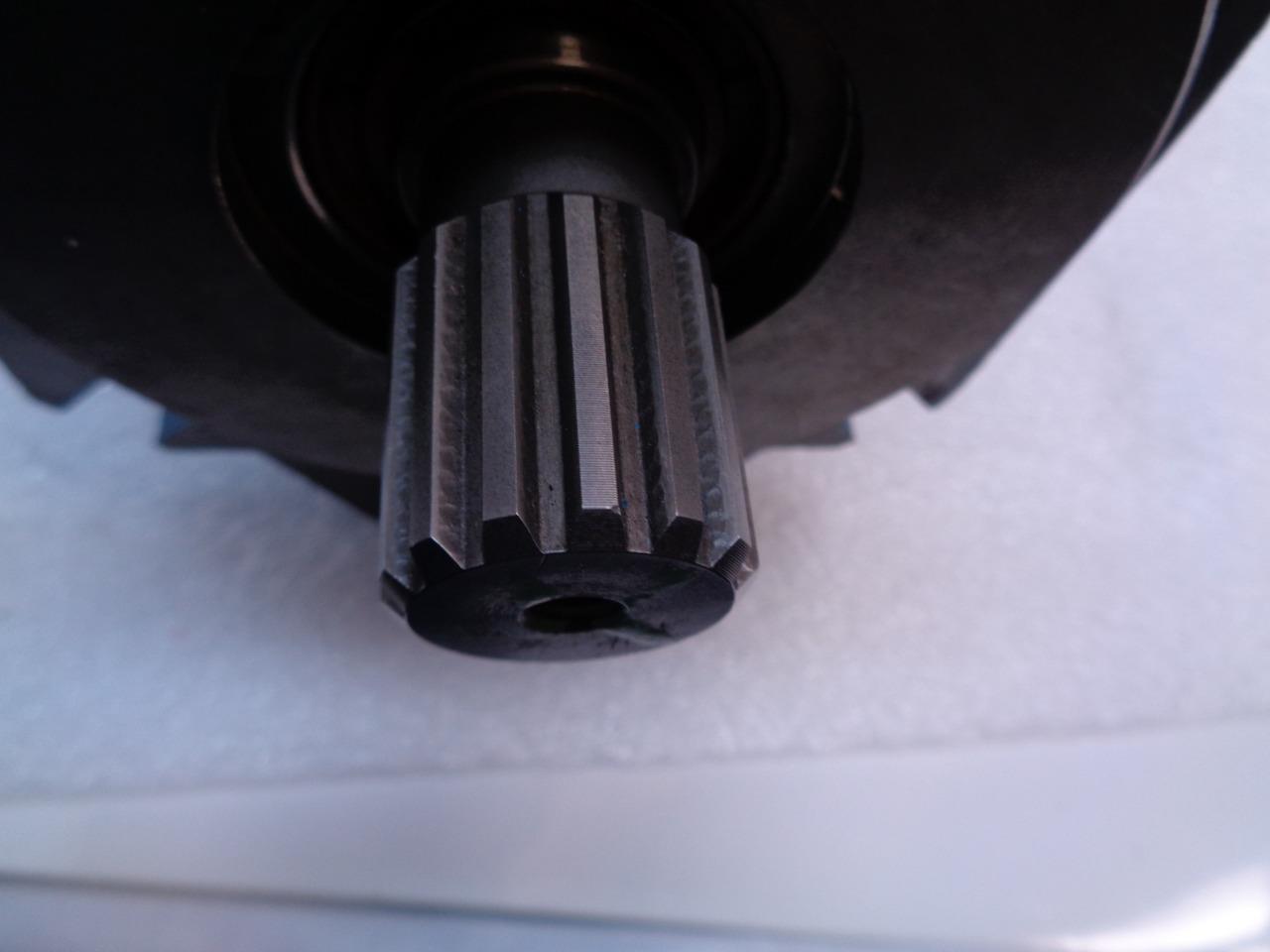

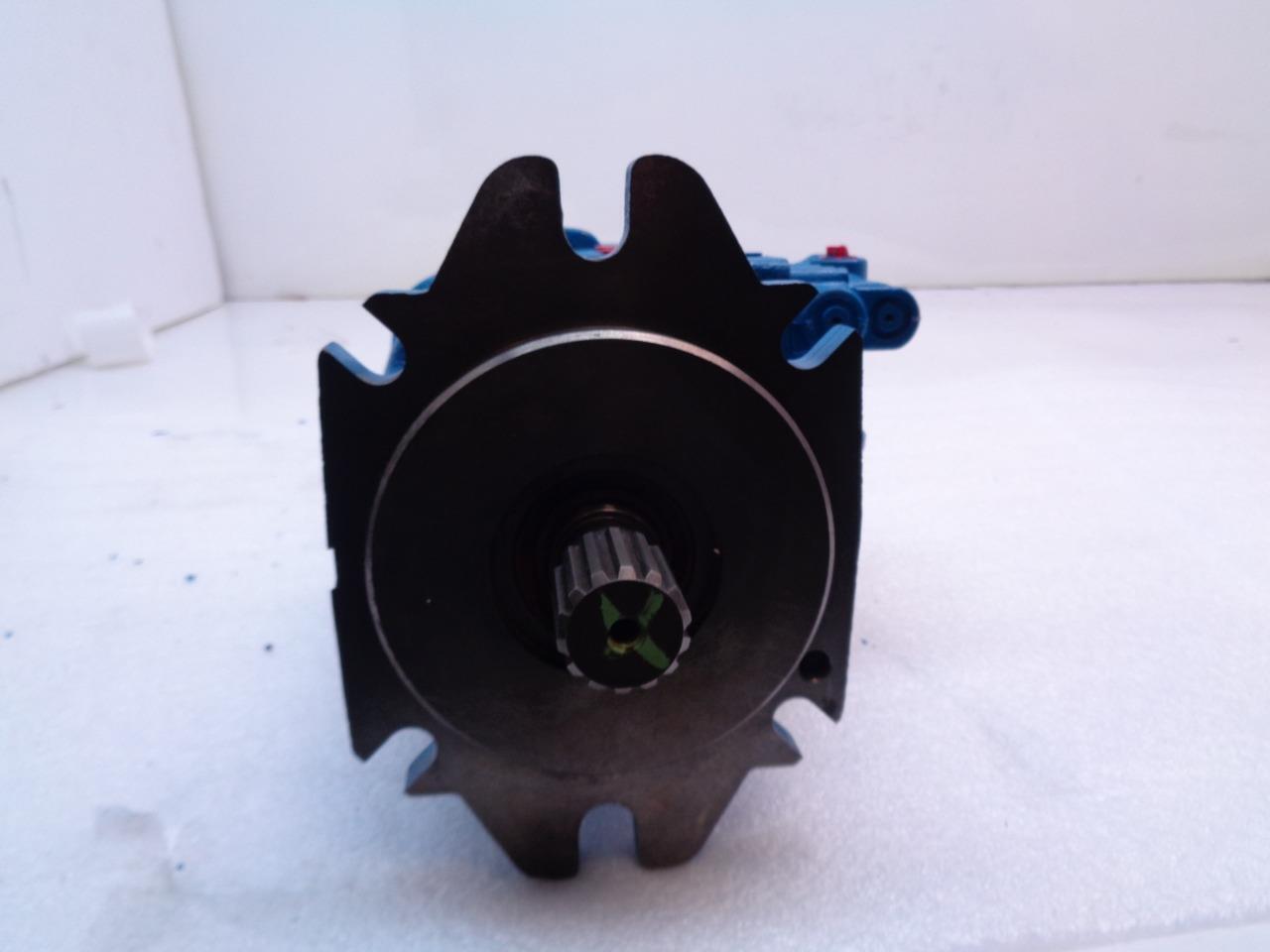

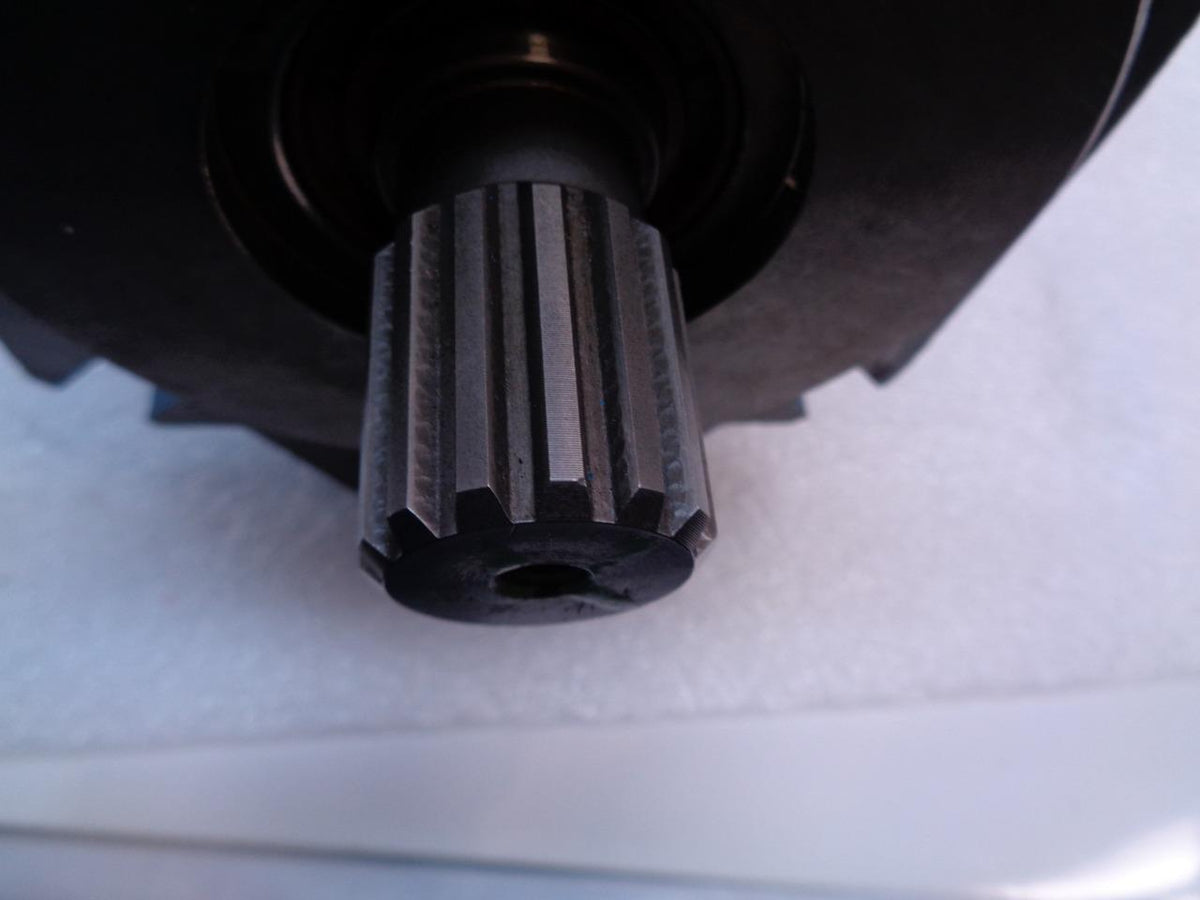

FRONT MOUNTING & INPUT SHAFT 42 2/4 BOLT C (SAE J744-127-2/4) WITH 14 TOOTH 12/24 SPLINE (ANSI B92.1-1996 MOD.),WITH 5/16-18UNC-2B THREAD, SHAFT EXTENSION 55,5 [2.19]

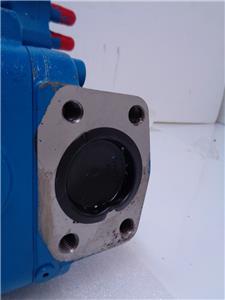

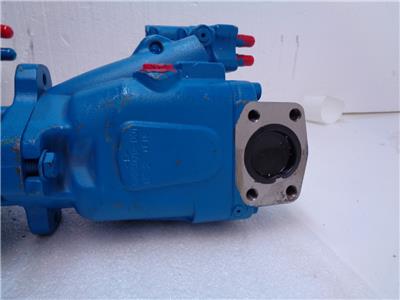

MAIN PORTS SIZE & LOCATION AB SIDE PORTS; SUCTION - 2.00 SAE J518 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61); PRESSURE - 1.00 SAE J518 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61)

DRAIN PORT SIZE & LOCATION 1 1.0625-12 UNF-2B O-RING PORT - TOP

DIAGNOSTIC PRESSURE PORTS 0 NO DIAGNOSTIC PRESSURE PORTS

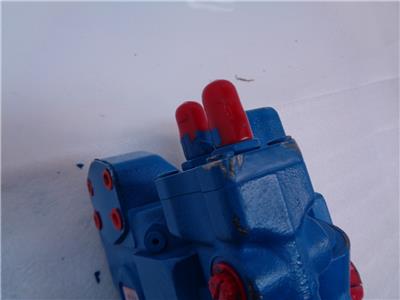

CONTROLLER TYPE AA PRESSURE AND FLOW COMPENSATOR WITH .4375-20 SAE O-RING LOAD SENSE PORT LEFT SIDE

PRESSURE COMPENSATOR SETTING 28 206,8-213,7 BAR [3000-3100 LBF/IN2]

FLOW COMPENSATOR SETTING 20 17,24-19,99 BAR [250-290 LBF/IN2]

TORQUE CONTROL SETTING 00 NO TORQUE CONTROL OR SECONDARY COMPENSATOR

CONTROL SPECIAL FEATURE 00 NO CONTROL SPECIAL FEATURES

MAXIMUM DISPLACEMENT OPTION 01 STANDARD DISPLACEMENT (AS GIVEN IN CODE TITLE)

AUXILIARY (REAR) MOUNT & OUTPUT SHAFT AD DUAL SAE J744 FLANGE 101-2 (2 BOLT B); ACCEPTS 15T 16/32 SPLINE WITH 46 [1.81] EXTENSION (COUPLER AND AUX. MOUNT O-RING INCLUDED)

SHAFT SEAL 3 DOUBLE, TWO-WAY SHAFT SEAL, FLUOROCARBON W/ VHO FILTER

PUMP SPECIAL FEATURES 00 NO PUMP SPECIAL FEATURES

PAINT CD BLUE PRIMER PER SPEC 209-13CD

IDENTIFICATION / PACKAGING 00 MARK EATON PRODUCT NUMBER AND FULL MODEL CODE ON LABEL / INDIVIDUAL BOX PACKAGING

DESIGN CODE C THIRD DESIGN

PLEASE DOUBLE CHECK MY INFORMATION AND FEEL FREE TO CONTACT ME WITH ANY QUESTIONS OR COMMENTS
I DON'T WANT TO DISAPPOINT ANYONE.
I WILL PACK ITEM(S) CAREFULLY FOR SHIPMENT.

OUR NEW FIVE STAR RATING SYSTEM WOULD GRADE THIS ITEM AS FOUR STARS!!
FIVE STARS IS BRAND NEW
FOUR STARS IS LIKE NEW OR IN EXCELLENT CONDITION
THREE STARS HAVE WEAR BUT APPEARS IN GOOD WORKING ORDER AND MAY OR MAY NOT BE IN PERFECT WORKING ORDER.
TWO STARS IS WELL WORN, BUT WE THINK IT WORKS. MAY REQUIRE SOME LIGHT REPAIR
ONE STAR IS IS WORN OUT REQUIRING REBUILD OR HEAVY REPAIR

ALL OUT OF COUNTRY SALES MAY BE REQUIRED TO PAY TARIFFS OR TAXES. WE DO NOT QUOTE THE COST OF TARRIFFS OR DUTIES OR TAXES. WE ALSO CANNOT MARK ALL ITEMS AS GIFTS. THAT IS COMPLETELY THE RESPONSIBILITY OF THE BUYER AND IS DETERMINED BY THEIR COUNTRY, NOT OURS. THE BUYER ALSO RECOGNIZES THAT OUT OF COUNTRY SALES TAKE MORE TIME FOR DELIVERY.

IF YOU HAVE ANY QUESTIONS PLEASE CONTACT US BEFORE BIDDING.

THANK YOU FOR LOOKING AT OUR LISTING.
PLEASE DO YOUR RESEARCH AS WE DO NOT MAKE ANY CLAIMS TO MERCHANTABILITY OR BEING COMPATIBLE TO YOUR APPLICATION.

You are only buying what is pictured or related to the item description.
