DIGITAL MEDIA 8G CABLE NON-PLENUM BLUE 300FT SPOOL DM-CBL-8G-NP R34 #5
DIGITAL MEDIA 8G CABLE NON-PLENUM BLUE 300FT SPOOL DM-CBL-8G-NP R34 #5
Couldn't load pickup availability
FIRST, THANK YOU FOR LOOKING AT ANOTHER ONE OF OUR GREAT AUCTIONS. PLEASE REALIZE THAT WE TRY TO MAKE EVERY TRANSACTION WITH US AN EXCELLENT ONE. OCCASIONALLY, WE MAKE A MISTAKE. IF YOU EVER EXPERIENCE A LESS THAN SATISFACTORY SITUATION WITH US, PLEASE LET US KNOW IMMEDIATELY SO THAT WE CAN FIND A METHOD TO RECTIFY YOUR CONCERNS.
FOR SALE IS ONE (1)
DIGITALMEDIA 8G CABLE NON-PLENUM BLUE 300FT SPOOL DM-CBL-8G-NP R34 #5
| Construction | ||
| F/UTP with four twisted pairs, inner jacket, drain, overall foil shield, ripcord, and overall jacket | ||
| Electrical & Performance | ||
| Mutual Capacitance | 17.1 pF / ft | |
| Velocity of Propagation | 69% | |
| Propagation Delay Skew | 45nS / 100 m | |
| DC Resistance | 28.6 Ohms / 1000 ft maximum | |
| DC Resistance Unbalance of a Pair | 5% maximum | |
| Capacitance Unbalance | 330 pF / 100 m | |
| Characteristic Impedance | 100 Ohms ±15% (1-250 MHz) | |
| (4) Twisted Pairs | ||
| Colors | Blue/white, orange/white, green/white, brown/white | |
| Conductors | 24 AWG solid copper | |
| Insulation | 0.0055 inch thick HDPE | |
| Outer Diameter (per conductor) | 0.040 inch (1.016 mm) maximum | |
| Inner Jacket | ||
| Color | White | |
| Material | PVC | |
| Thickness | 0.0135 ±0.0015 inch (0.3429 ±0.0381 mm) | |
| Overall Shield | ||
| Drain | 26 AWG solid tin/copper | |
| Shield | Aluminum foil (100% coverage) | |
| Outer Jacket | ||
| Color | Blue | |
| Material | PVC | |
| Thickness | 0.018 inch (0.4572 mm) | |
| Outer Diameter | 0.244 ±0.006 inch (6.2 ±0.15 mm) | |
| Minimum Recommended Bend Radius | 2.75 inches (70 mm) | |
| Maximum Pull Tension | 25 lbf (111 N) | |
| Rating | ||
| NEC Article 800; UL Subject 444, Type CM; CSA Type CMR; ANSI/TIA/EIA-568-B.2 Category 5e | ||

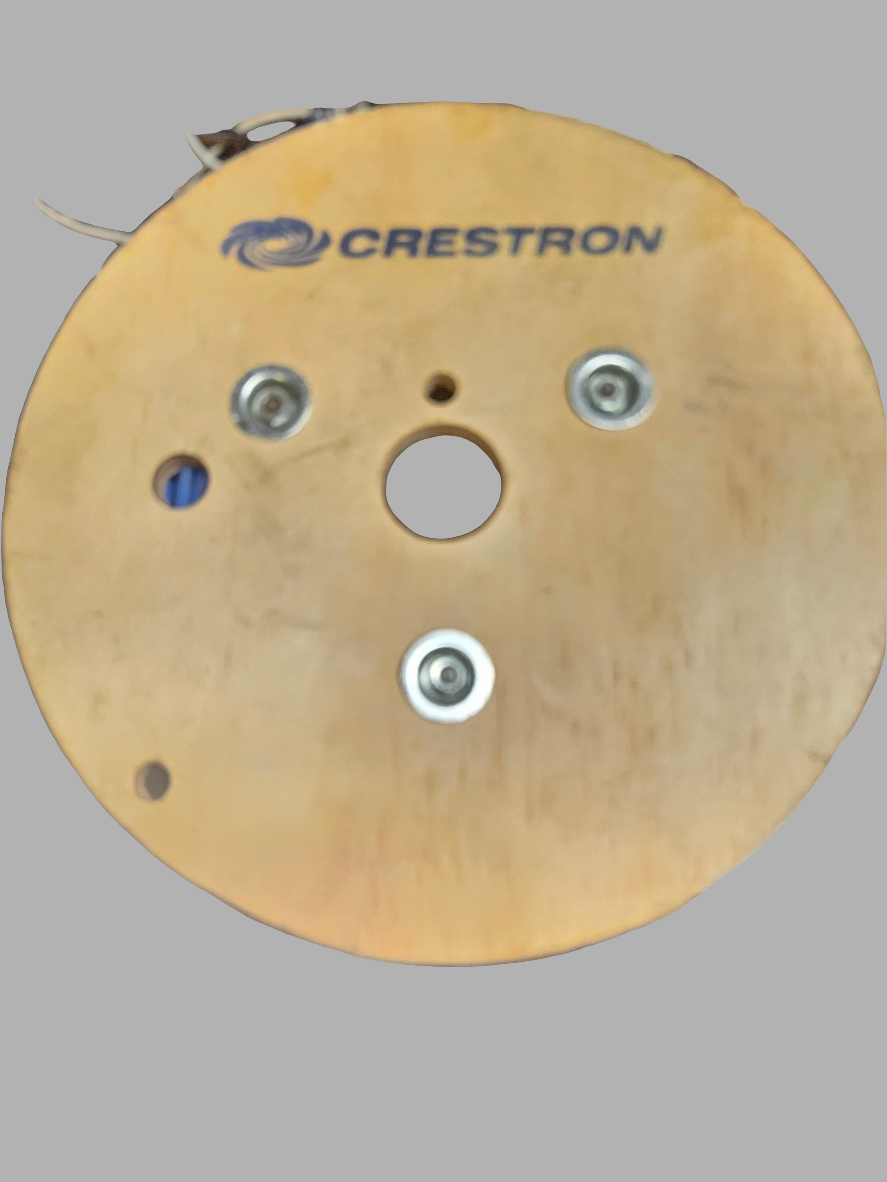

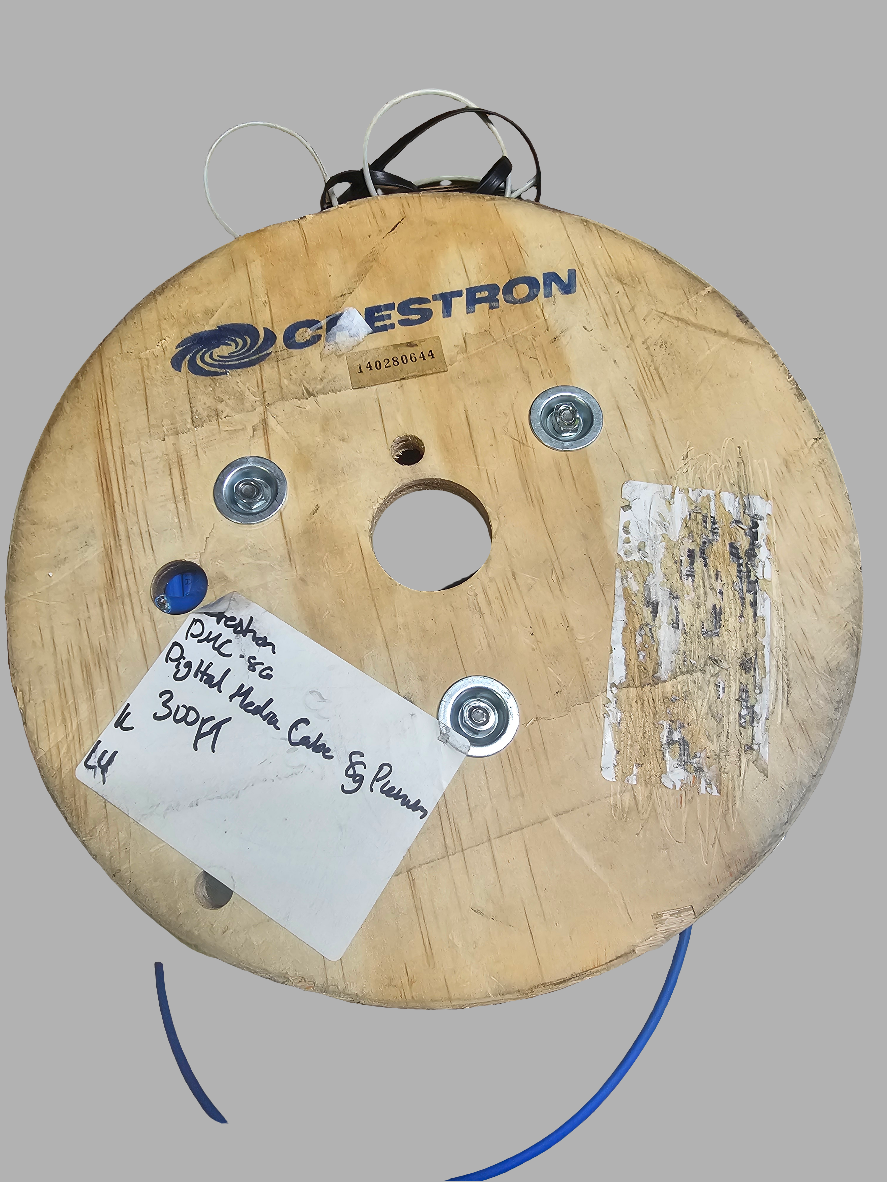

SPOOL REEL IS DAMAGED AND CAN BE SEEN IN PICTURES
PLEASE DOUBLE CHECK MY INFO TO SEE IF I AM WRONG AND LET ME KNOW, I DON'T WANT TO DISAPPOINT ANYONE.
THIS IS THE INFORMATION I FOUND ABOUT THIS ITEM. GIVE US A CALL FOR ANY FURTHER QUESTIONS OR ASK YOUR LOCAL DEALER TO ENSURE APPLICATION.
I WILL PACK ITEM(S) CAREFULLY FOR SHIPMENT.
OUR NEW FIVE STAR SYSTEM GIVES THIS ITEM 4 STARS!!!
FIVE STARS IS PERFECT AND NEW.
FOUR STARS IS LIKE NEW OR IN EXCELLENT CONDITION
THREE STARS MAY HAVE SOME WEAR BUT APPEARS IN GOOD WORKING ORDER AND MAY OR MAY NOT BE IN PERFECT WORKING ORDER.
TWO STARS IS WELL WORN, BUT WE THINK IT WORKS. MAY REQUIRE SOME LIGHT REPAIR
ONE STAR IS WORN OUT REQUIRING REBUILD OR HEAVY REPAIR
ALL OUT OF COUNTRY SALES MAY BE REQUIRED TO PAY TARIFFS OR TAXES. WE DO NOT QUOTE THE COST OF TARIFFS OR DUTIES OR TAXES. WE ALSO CANNOT MARK ALL ITEMS AS GIFTS. THAT IS COMPLETELY THE RESPONSIBILITY OF THE BUYER AND IS DETERMINED BY THEIR COUNTRY, NOT OURS. THE BUYER ALSO RECOGNIZES THAT OUT OF COUNTRY SALES TAKE MORE TIME FOR DELIVERY.
IF YOU HAVE ANY QUESTIONS PLEASE CONTACT US BEFORE BIDDING.
THANK YOU FOR LOOKING AT OUR LISTING.
PLEASE DO YOUR RESEARCH AS WE DO NOT MAKE ANY CLAIMS TO MERCHANTABILITY OR BEING COMPATIBLE TO YOUR APPLICATION.
You are only buying what is pictured or related to the item description.
