FOR SALE IS ONE (1)

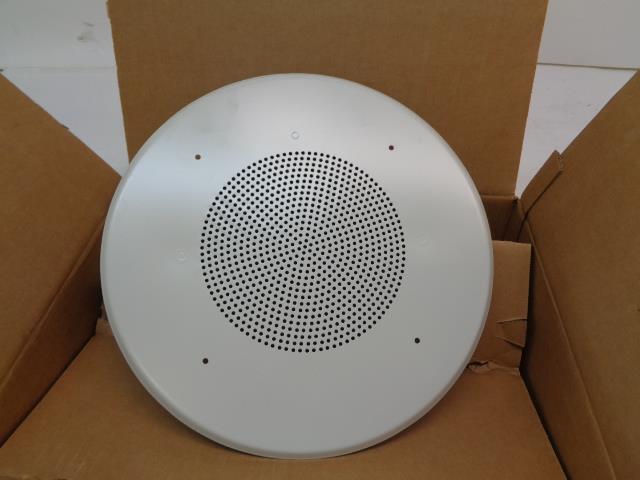

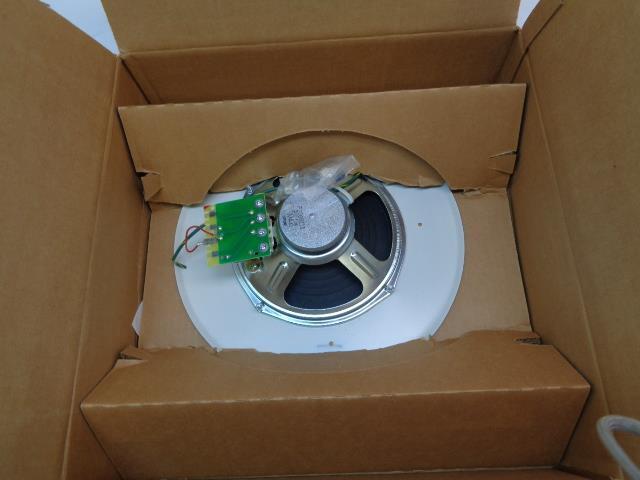

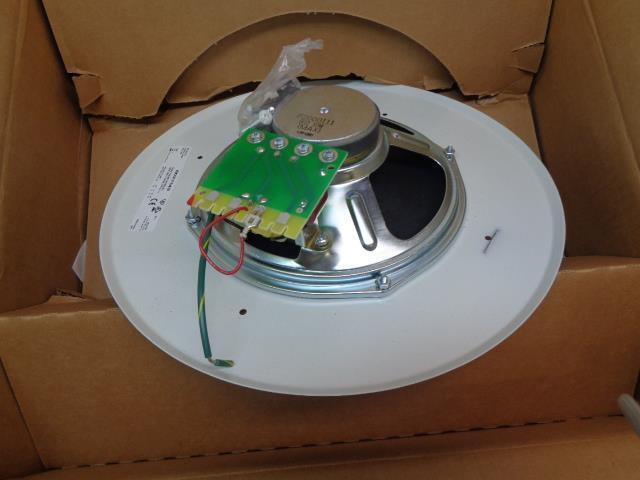

NEW EST GE SPEAKER STROBE SECURITY ASY 8" 70V 965-1A-8RW

SPECS
Input/Operating Volts Speaker: 25 VRMS (964 Series) or 70 VRMS (965 Series) - see ordering table
Strobe: 20-31 Vdc Continuous
Speaker Taps/Output (note 1) Measured at 10 ft (3.05 m): 4W = 87 dBA, 2W = 84 dBA, 1W = 81 dBA, 1/2W = 78 dBA
Strobe Flash Synchronization Synchronized at one flash per second. External control module necessary to meet
UL 1971 synchronization requirements of 10 milliseconds over a two-hour period.
Compatible Synchronization Modules G1M, G1M-RM, SIGA-CC1S, SIGA-MCC1S
Rated Strobe Output (cd) 964/965-5A-8RW 964/965-7A-8RW 964/965-3A-8RW 964/965-8A-8RW
UL 1971 Rated Strobe Output (cd) 15cd
(wall only)
15cd
(wall or ceiling)
30cd (wall)
15cd (ceiling)
110cd (wall)
60cd (ceiling)
UL 1638/ULC S526 Rated Strobe Output 15cd 75cd 30cd 110cd
Mean Operating Current (note 2) 70 mA @ 24 Vdc
83 mA @ 20 Vdc
96 mA @ 24 Vdc
115 mA @ 20 Vdc
89 mA @ 24 Vdc
107 mA @ 20 Vdc
197 mA @ 24 Vdc
241 mA @ 20 Vdc
Peak Operating Current (note 2) 156 mA @ 24 Vdc 204 mA @ 24 Vdc 189 mA @ 24 Vdc 338 mA @ 24 Vdc
Mean Operating Current (note 3) 58 mA @ 24 Vdc
69 mA @ 20 Vdc
79 mA @ 24 Vdc
97 mA @ 20 Vdc
75 mA @ 24 Vdc
91 mA @ 20 Vdc
338 mA @ 24 Vdc
202 mA @ 20 Vdc
Peak Operating Current (note 3) 356 mA @ 24 Vdc 446 mA @ 24 Vdc 402 mA @ 24 Vdc 788 mA @ 24 Vdc
Strobe Lens Markings Supplied with LKC-1 “FIRE” red letters, horizontal both sides (Ceiling Mount) - see
LKW and LKC series for wall mount style and optional markings
Flash Tube Enclosure Clear LEXAN with snap-on white markings sleeve

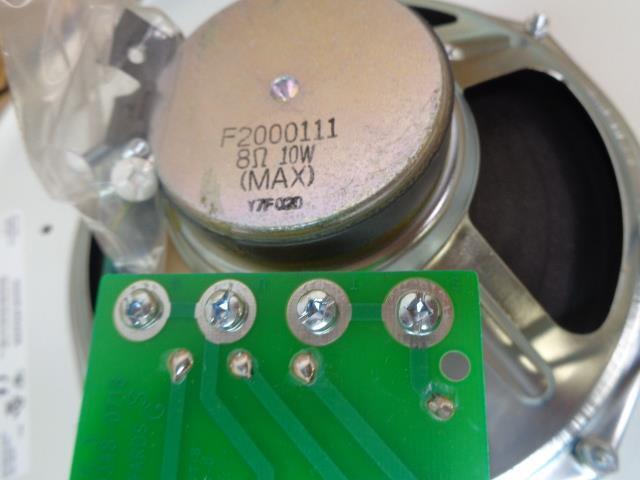

Speaker Cone 8" (200 mm) cone rated for 5 watts, 8 ohm voice coil, 152 gram (5.36 oz) ceramic magnet
Baffle Steel, baked epoxy polyester powder-coat finish - WHITE
Wire Connections Terminals (polarized) for Speaker - #14 AWG (1.95 mm²) maximum.
Color-coded polarized wire leads for strobe (2-INs/2-OUTs).
INDOOR Operating Environment 85% @ 30° C relative humidity; 32-120° F (0-49° C) ambient temperature
Mounting - INDOOR Flush: EST 960A-8RF Round Flush Box
