Name: NEW EATON EX20 SERIES OPEN CIRCUT PISTON PUMP 421AK02245C - ADU062L BSRG5
Brand: BRR Tires & Automotive
SKU: EB-186365320034
Price: 1706.39 USD
Availability: InStock

Description

FIRST, THANK YOU FOR LOOKING AT ANOTHER ONE OF OUR GREAT AUCTIONS. PLEASE REALIZE THAT WE TRY TO MAKE EVERY TRANSACTION WITH US AN EXCELLENT ONE. OCCASIONALLY, WE MAKE A MISTAKE. IF YOU EVER EXPERIENCE A LESS THAN SATISFACTORY SITUATION WITH US, PLEASE LET US KNOW IMMEDIATELY SO THAT WE CAN FIND A METHOD TO RECTIFY YOUR CONCERNS.

FOR SALE IS ONE (1)

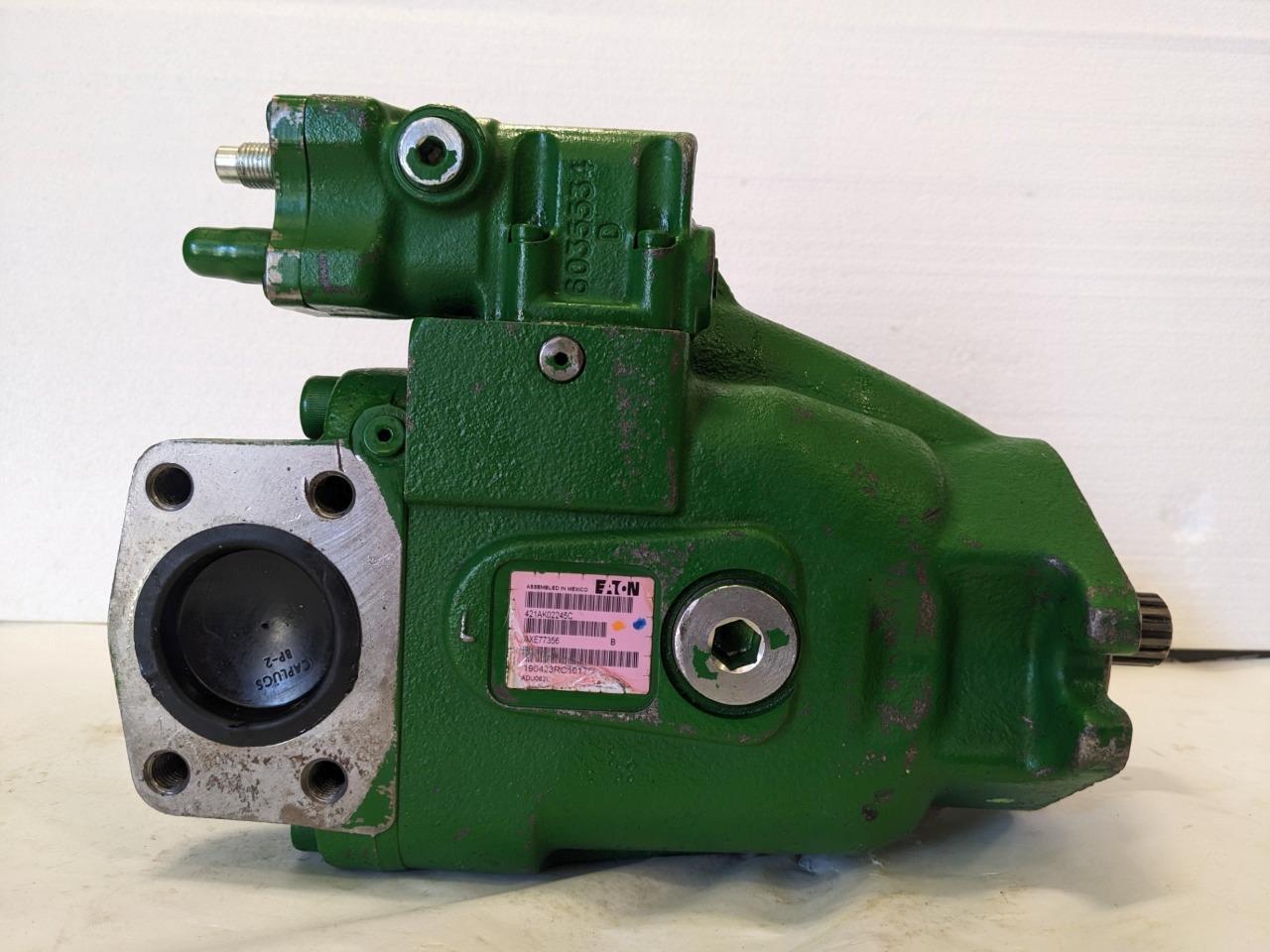

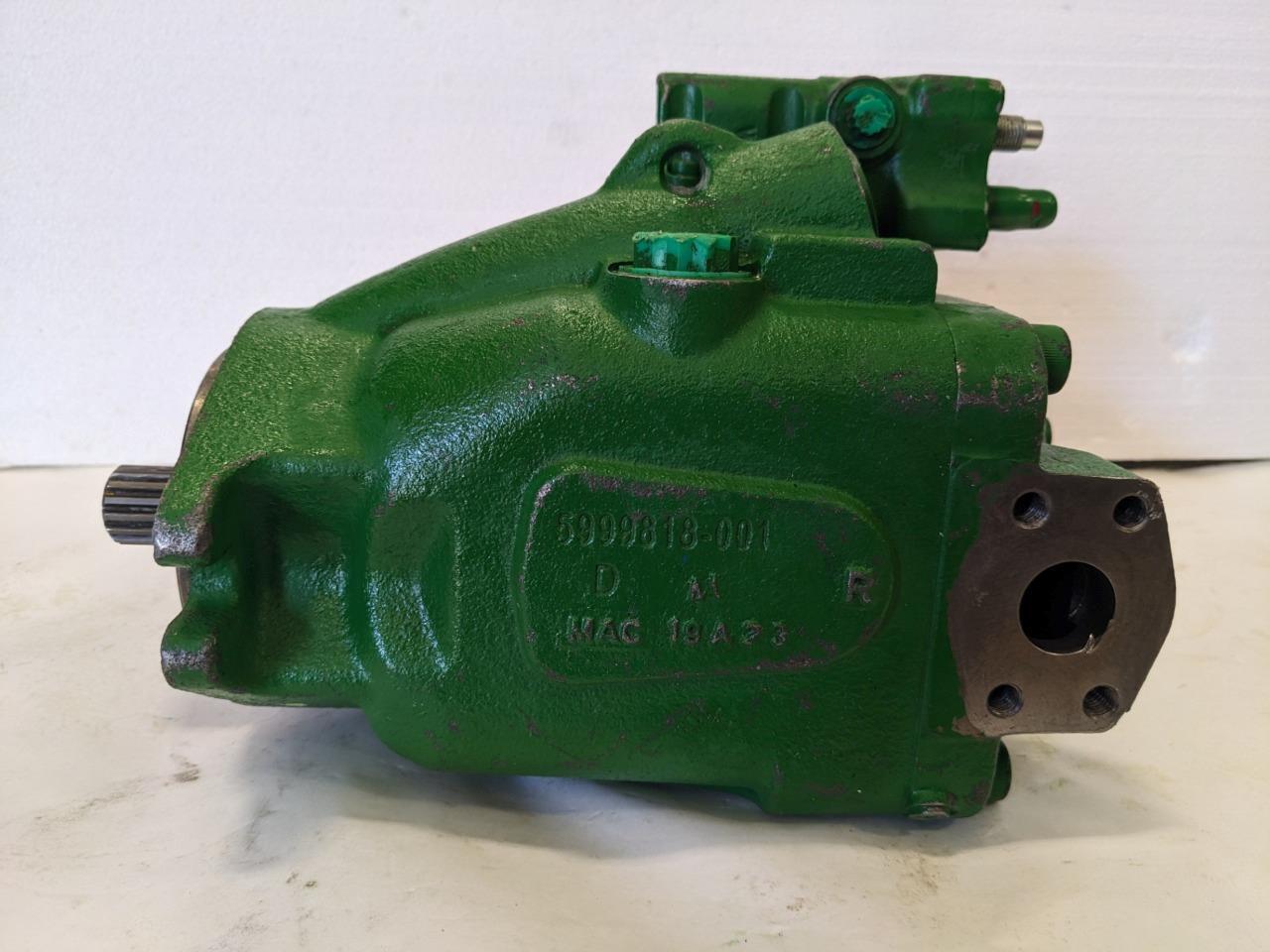

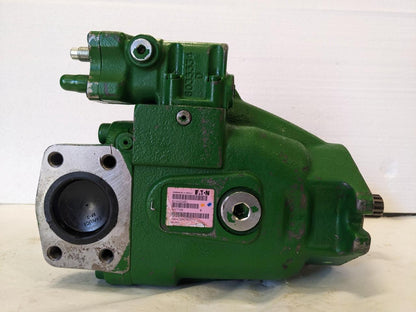

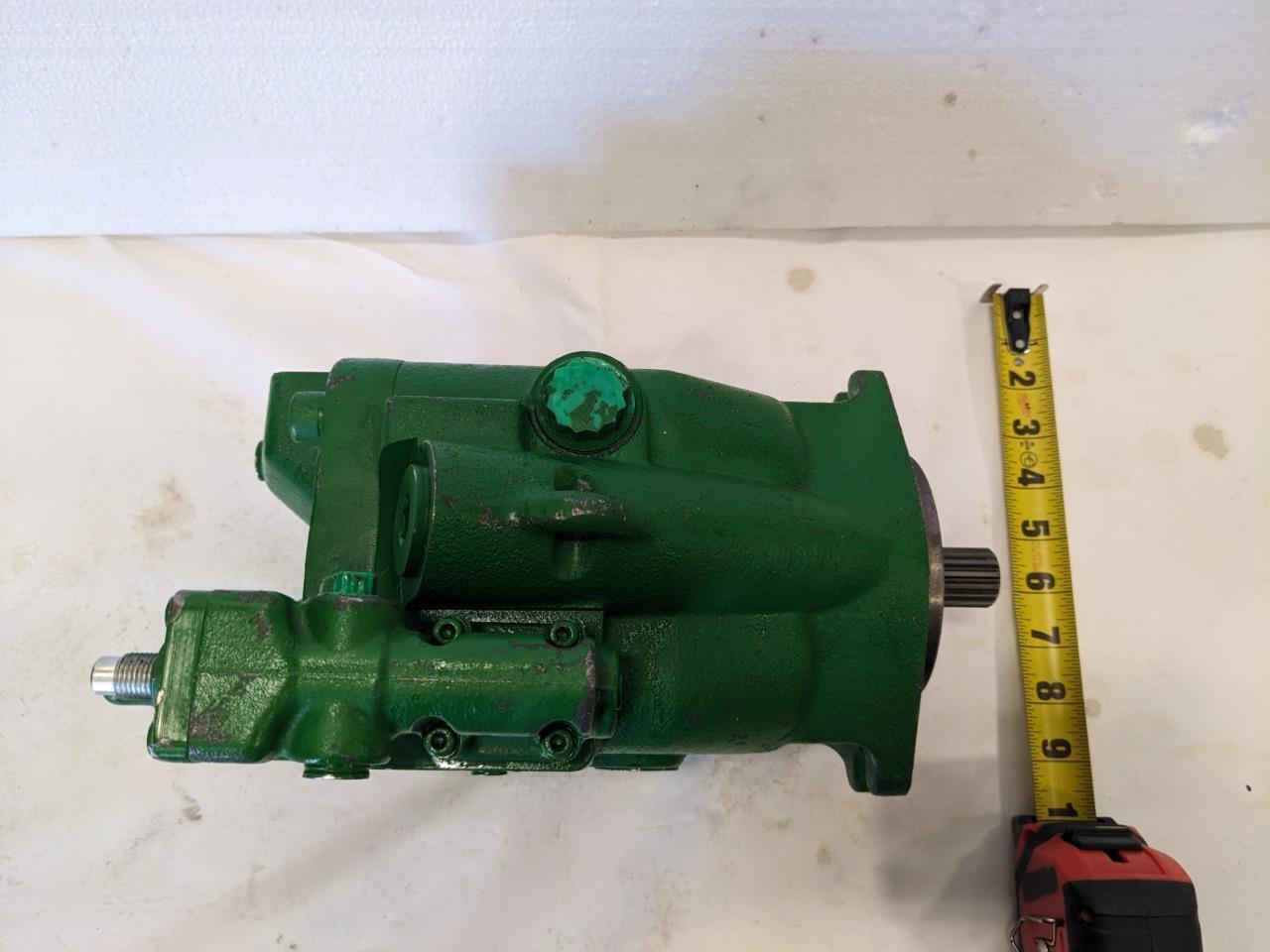

NEW EATON EX20 SERIES OPEN CIRCUT PISTON PUMP 421AK02245C - ADU062L

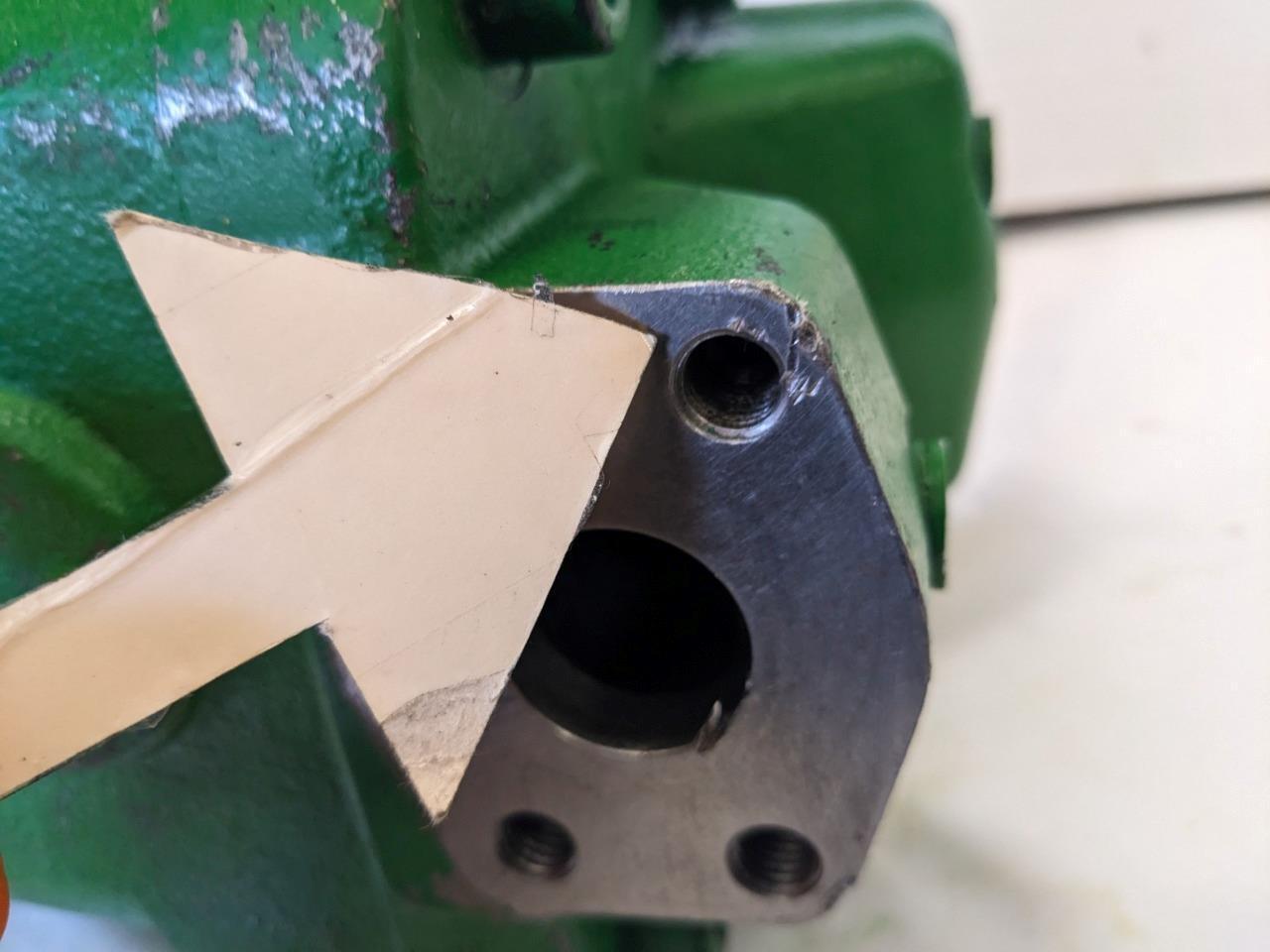

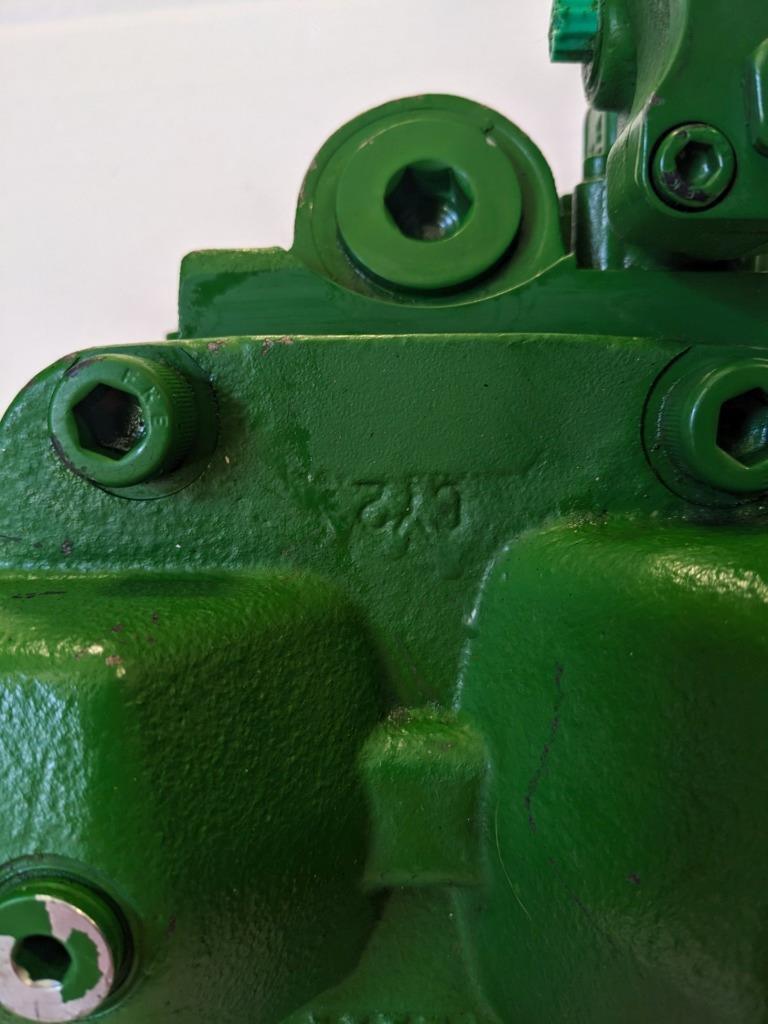

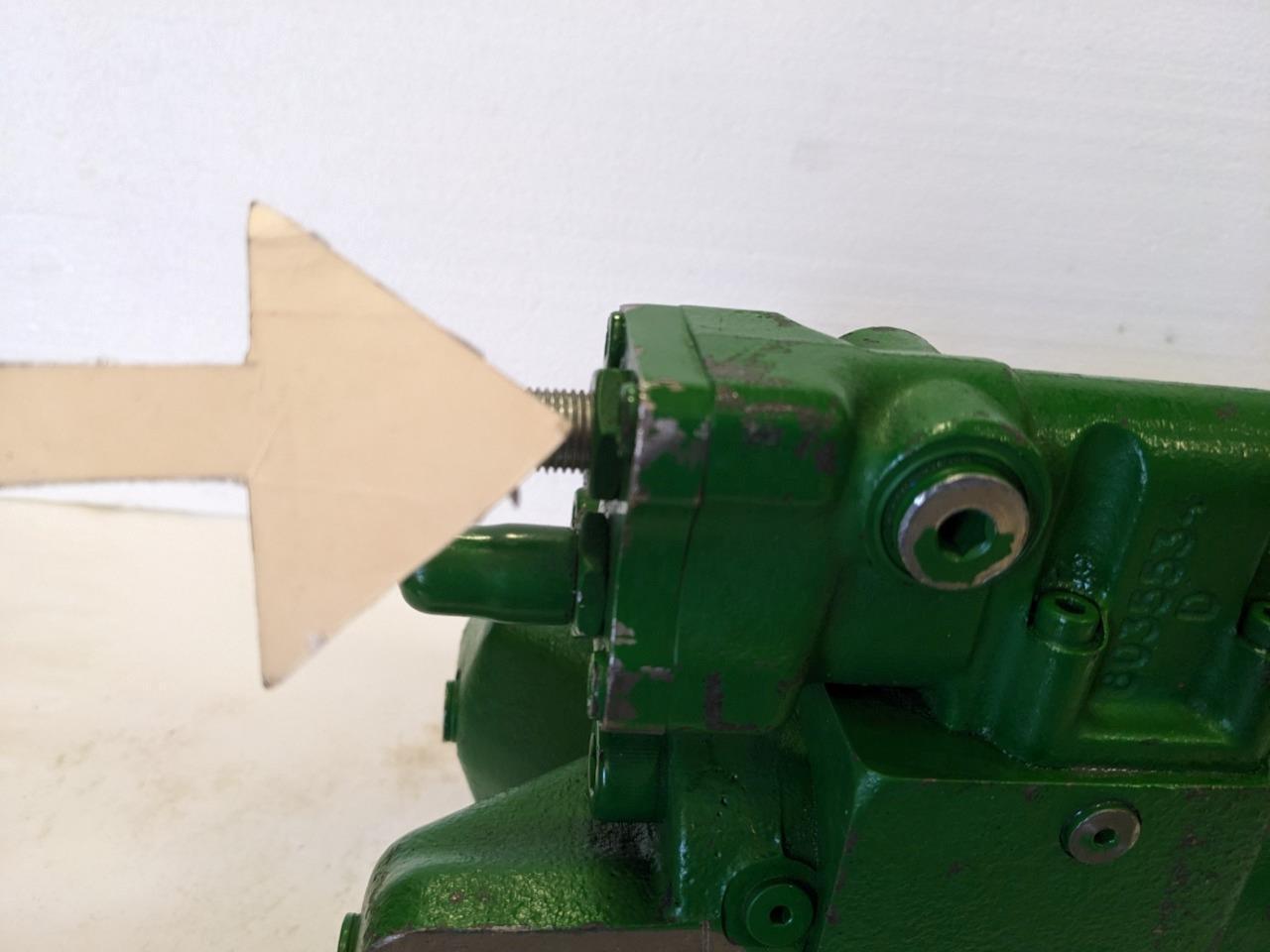

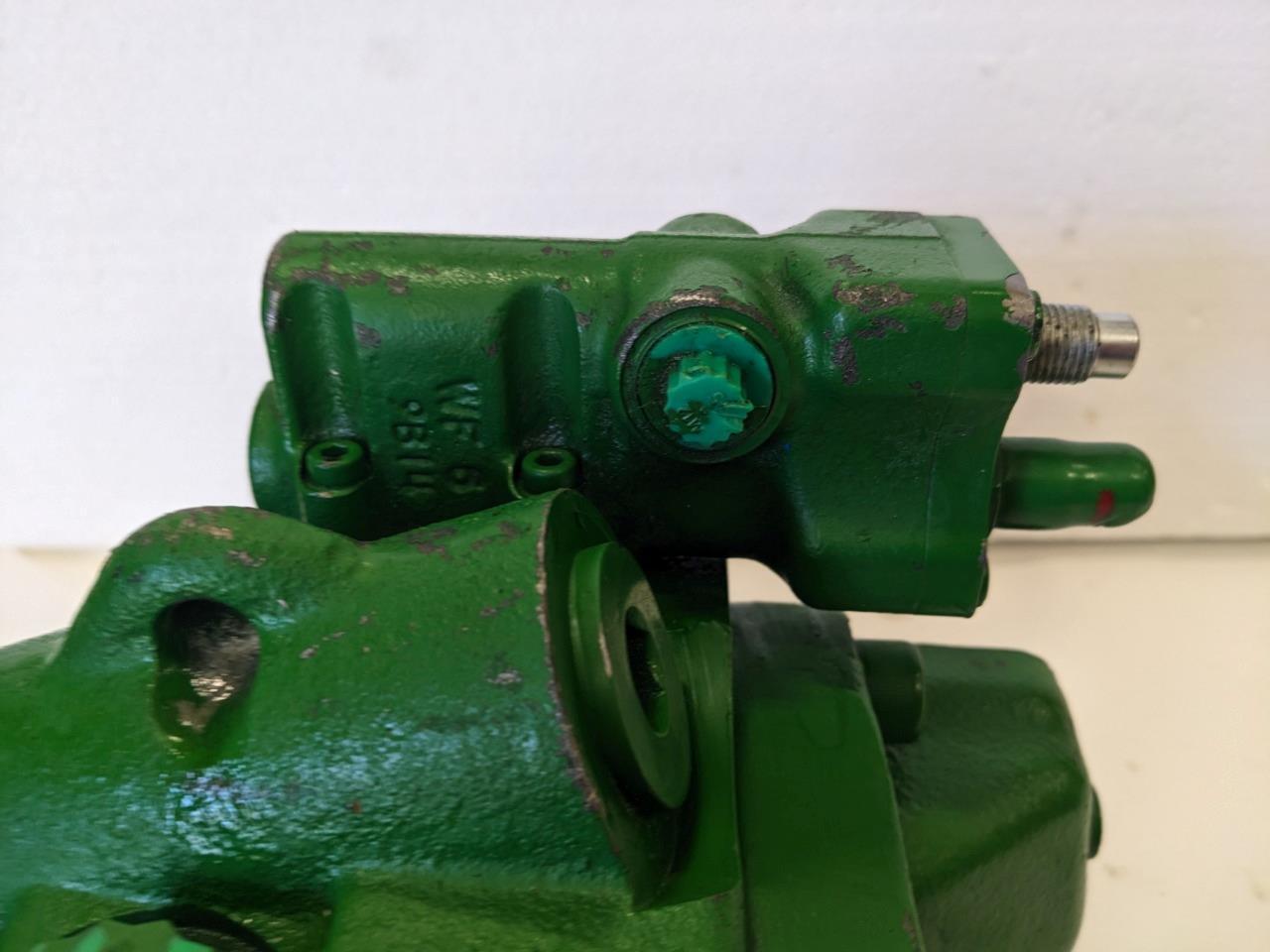

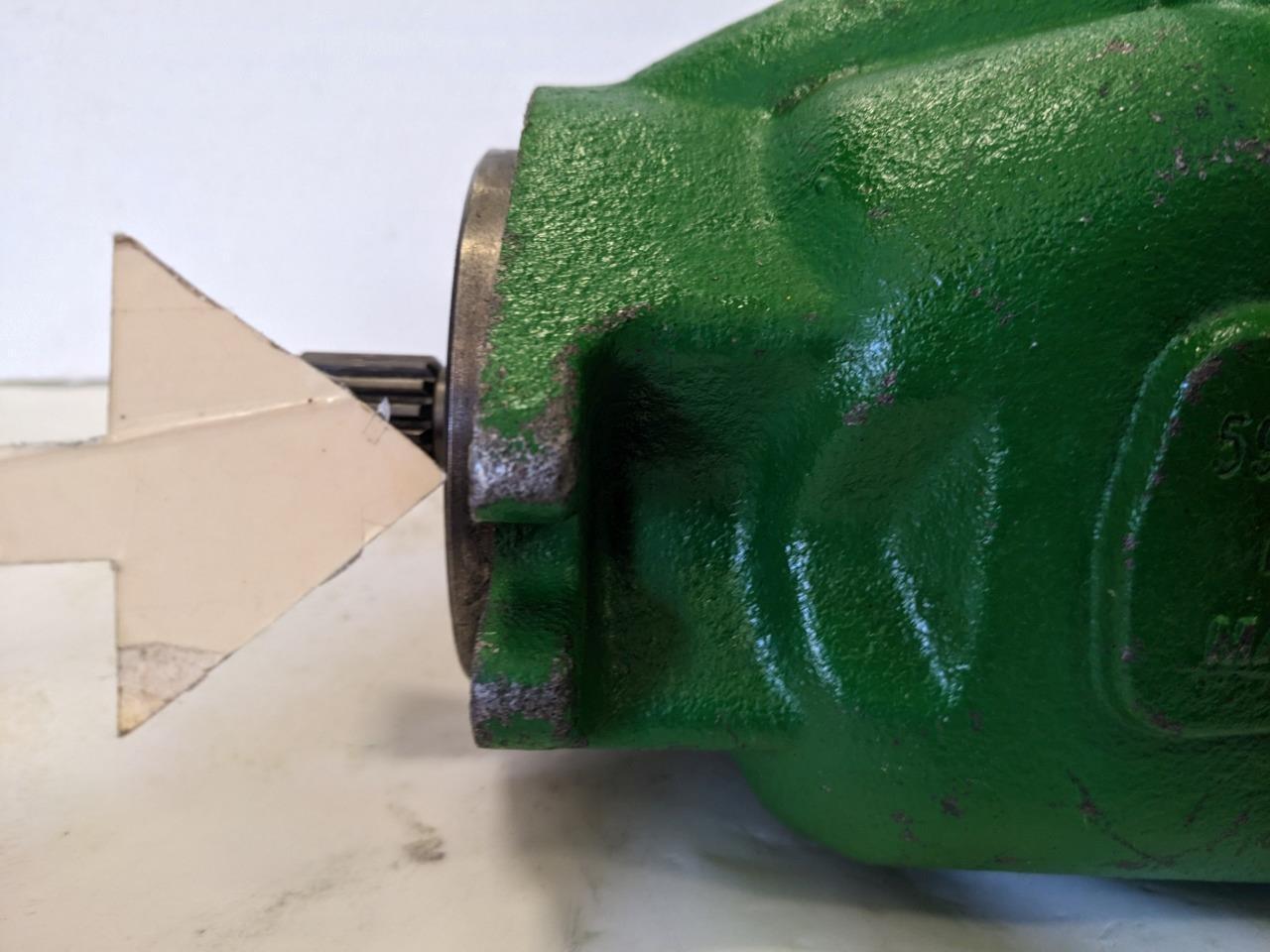

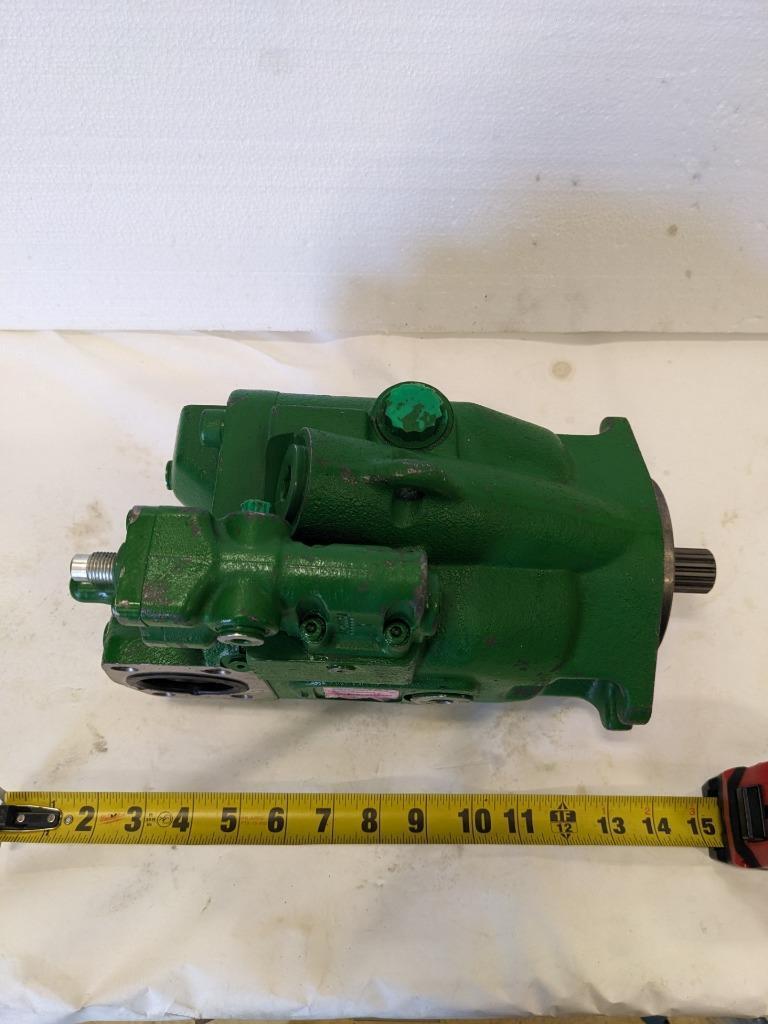

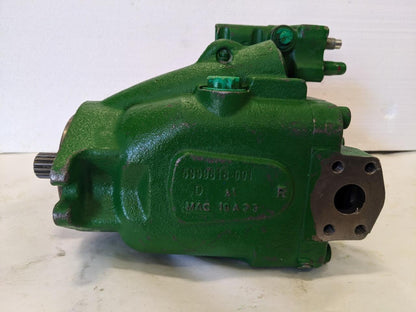

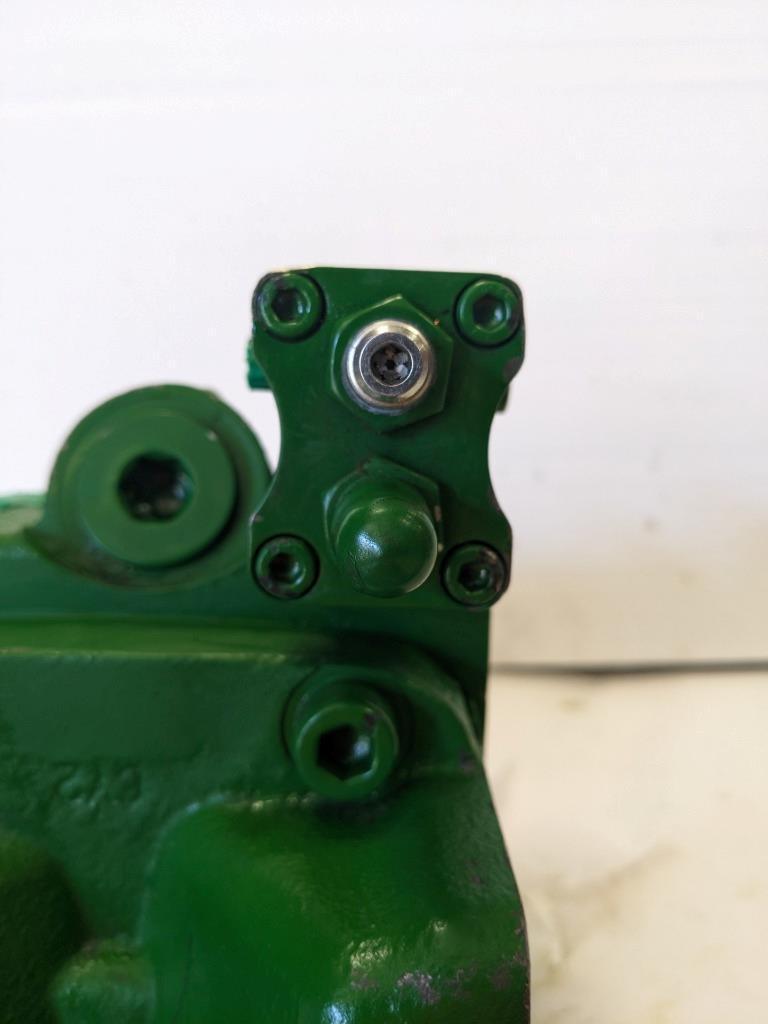

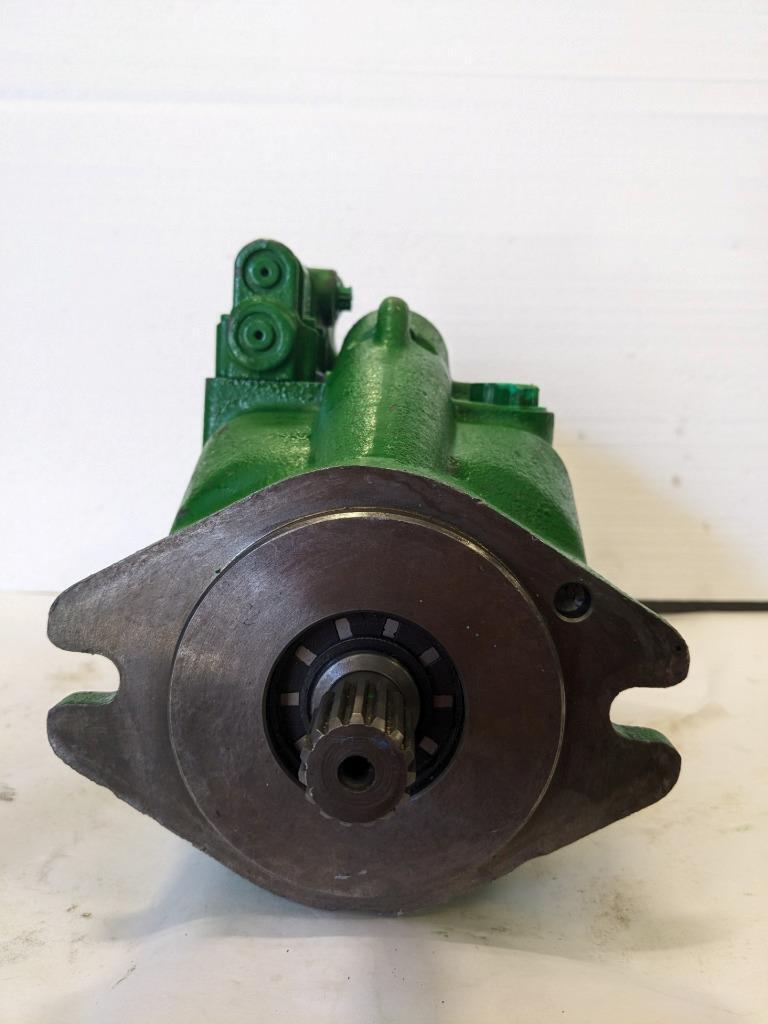

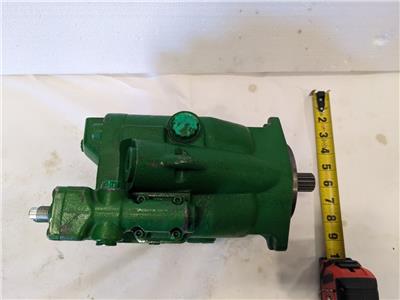

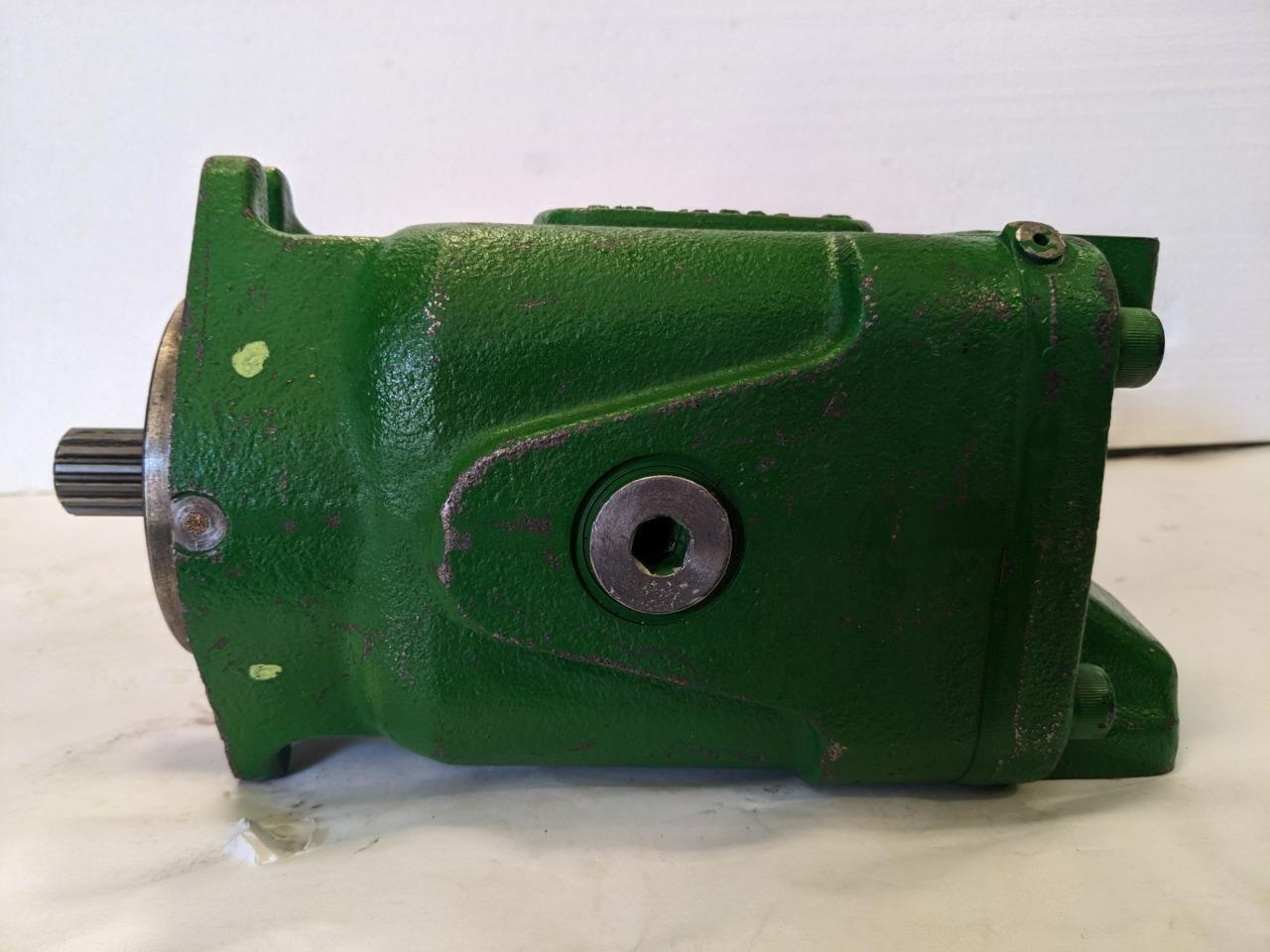

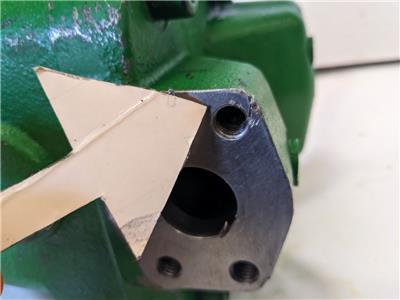

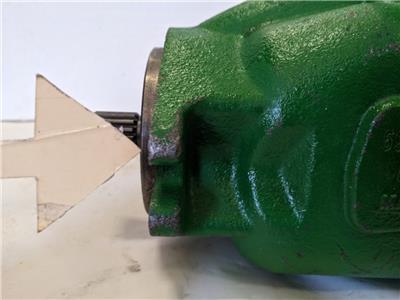

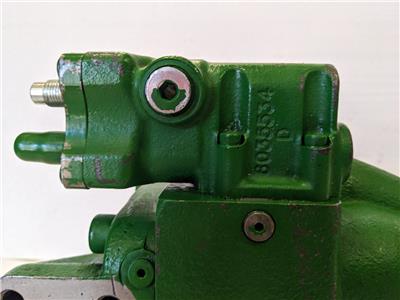

ITEM IS NEW AND IN GREAT CONDITION. ITEM DOES NOT COME IN ANY ORIGIANL PACKAGING. ITEM HAS SOME MINOR COSMETIC WEAR SCRATCHES AND DENTS. ANY DAMAGE IS DUE TO SHIPPING AND HANDLING. ONLY COMES WITH WHAT IS PICTURED SEE PICS FOR MORE INFO. PLEASE DO YOURE FITMENT INFO TO SEE IF THIS IS RIGHT FOR YOU.

PRODUCT LENGTH/DEPTH

11.94 in

PRODUCT HEIGHT

8.85 in

PRODUCT WIDTH

5.75 in

PRODUCT WEIGHT

55.1 lb

MAXIMUM CASE DRAIN TEMPERATURE

220 °F

SHAFT SEALS

Double, Two-Way Shaft Seal, Viton With VHO Filter

INPUT SPEED AT 2.0 BAR ABSOLUTE

2800 RPM

INPUT SPEED AT 0.8 BAR ABSOLUTE

2400 RPM

MAXIMUM CASE PRESSURE

350 bar

RESPONSE TIME

25 ms

DESIGN CODE

Third

IDENTIFICATION

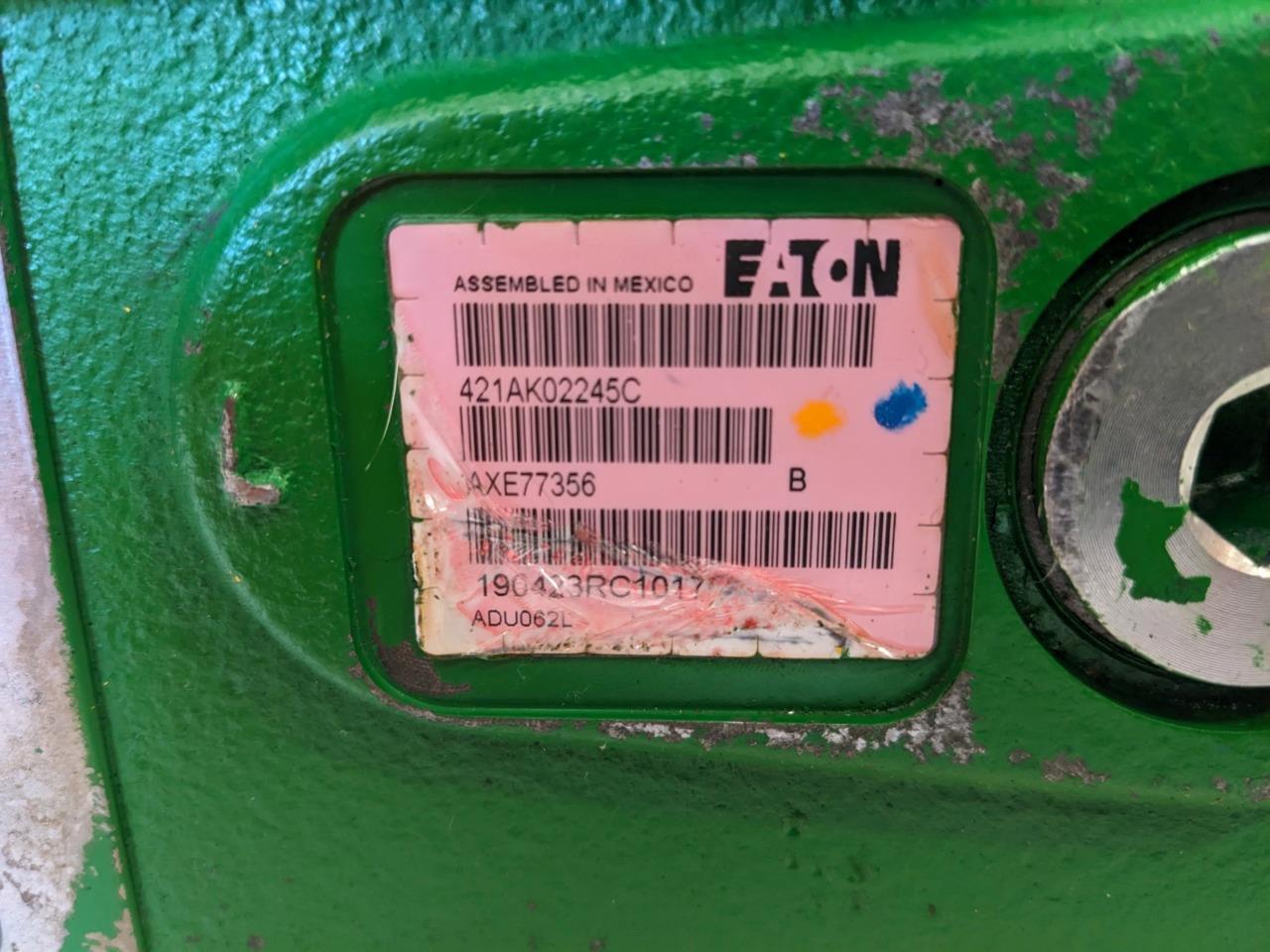

Mark Eaton Product Number and Full Model Code On Label

MAXIMUM INPUT TORQUE

2460 in lb

CONTROLLER TYPE

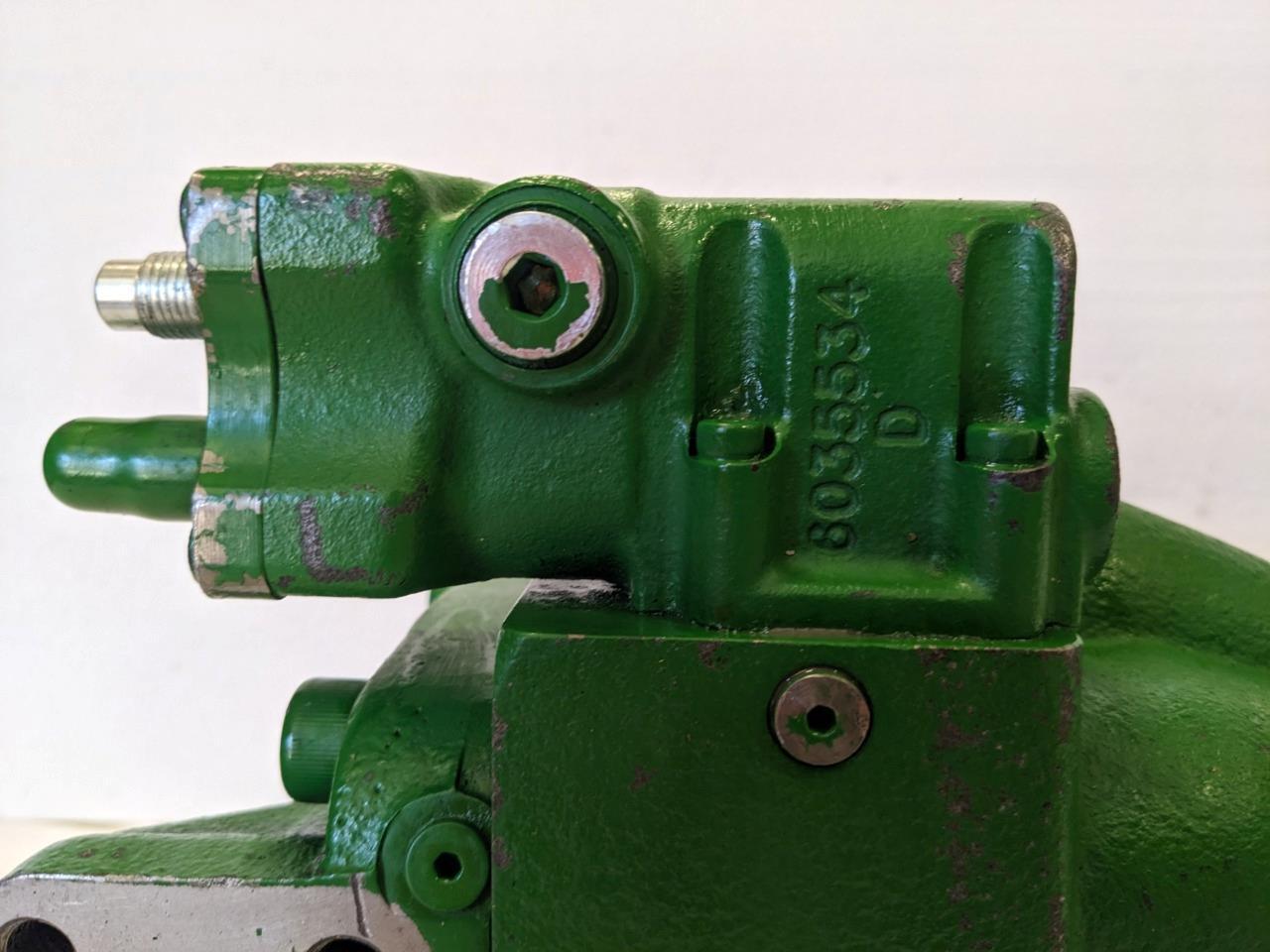

Pressure and Flow Compensator with Torque Control and .4375-20 SAE O-Ring Load Sense Port Left Side

MAXIMUM RECOMMENDED OPERATING VISCOSITY

40 cSt

FRONT MOUNTING

2 Bolt B

SHAFT ROTATION

Left

INPUT SHAFT

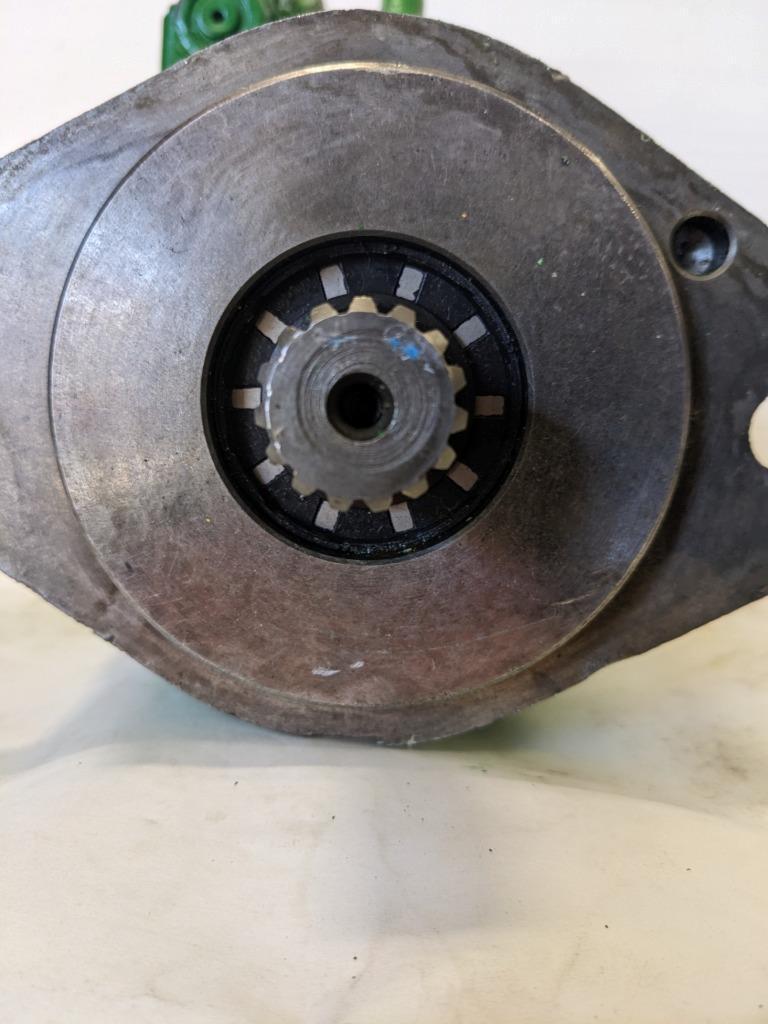

15 Tooth 16/32 Spline, Shaft Extension 46 [1.81]

AUXILIARY MOUNTING

None

PUMP SPECIAL FEATURES

None

INPUT SPEED - MINIMUM

600 RPM

MAIN PORT SIZE AND LOCATION

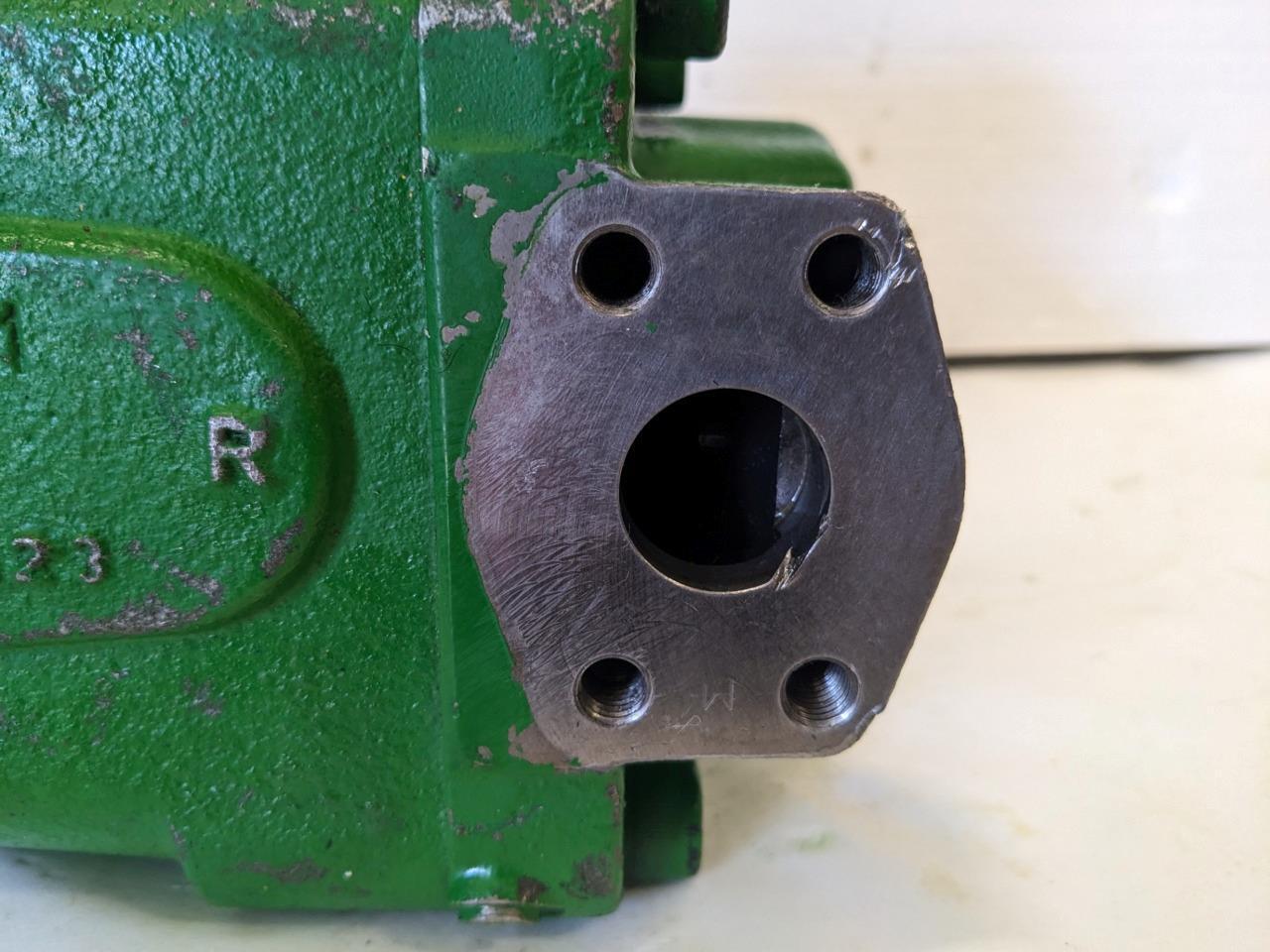

Side Ports; Suction - 2.00 4-Bolt Split Flange Port Standard Pressure Series (Code 61) with M12 X 1.75 Thread; Pressure - 1.00 4-Bolt Split Flange Port Standard Pressure Series (Code 61) with M10 X 1.5 Thread

PEAK PRESSURE RATING

5000 Psi

FLUID CLEANLINESS

21/18/13

CODE TITLE

Pressure Compensated/Pressure Flow Compensated

CONTROL SPECIAL FEATURES

None

INPUT SPEED AT 1.0 BAR ABSOLUTE

2600 RPM

INLET PRESSURE

280 bar

THEORETICAL INPUT TORQUE AT MAXIMUM DISPLACEMENT

278 Nm

MINIMUM RECOMMENDED OPERATING VISCOSITY

16 cSt

BEARING LIFE AT RATED PRESSURE

3320 hr

NOMINAL PRESSURE RATING

4600 Psi

HOUSING MATERIAL

Cast Iron

PAINT

Green Per Spec 209-13K

DRAIN PORT SIZE AND LOCATION

M22 X 1.5 Metric O-Ring Port + For Vertical Mounting M22 X 1.5 Metric O-Ring Ports Top and Bottom (Plugged) (28Cc and 45Cc)

CONTINUOUS ALLOWABLE CASE PRESSURE

320 bar

INPUT SPEED - MAXIMUM

3600 RPM

DISPLACEMENT

62.3 cm³/rev

MAXIMUM DISPLACEMENT OPTION

Standard Displacement

MAXIMUM INPUT POWER

75.6 kW

TORQUE CONTROL SETTING

0 in lb

APPLICATION

Loader backhoes, Vibratory cable plows, Mining machinery, Dump truck lifts, Agriculture tractors, Chemical applicator trucks, Railroad equipment, Container handling, all terrain and truck cranes, Vibratory cable plows, Mining machinery and tunnel boring equipment, Utility boom, off road dump and refuse trucks, Material handling trucks and rough terrain fork lifts, Concrete and asphalt pavers, Feller/bunchers, forwarders and log loaders, Crawler dozers, Articulate haulers, Mini excavators

DIAGNOSTIC PRESSURE PORTS

M12 X 1.5 Metric O-Ring Ports - Suction and Pressure - Plugged

PLEASE DOUBLE CHECK MY INFO TO SEE IF I AM WRONG AND LET ME KNOW, I DON'T WANT TO DISAPPOINT ANYONE.

THIS IS THE INFORMATION I FOUND ABOUT THIS ITEM. GIVE US A CALL FOR ANY FURTHER QUESTIONS OR ASK YOUR LOCAL DEALER TO ENSSURE APPLICATION.

I WILL PACK ITEM(S) CAREFULLY FOR SHIPMENT.

OUR NEW FIVE STAR SYSTEM GIVES THIS ITEM 4 STARS!!!
FIVE STARS IS PERFECT AND NEW.
FOUR STARS IS LIKE NEW OR IN EXCELLENT CONDITION
THREE STARS MAY HAVE SOME WEAR BUT APPEARS IN GOOD WORKING ORDER AND MAY OR MAY NOT BE IN PERFECT WORKING ORDER.
TWO STARS IS WELL WORN, BUT WE THINK IT WORKS. MAY REQUIRE SOME LIGHT REPAIR
ONE STAR IS WORN OUT REQUIRING REBUILD OR HEAVY REPAIR

ALL OUT OF COUNTRY SALES MAY BE REQUIRED TO PAY TARIFFS OR TAXES. WE DO NOT QUOTE THE COST OF TARRIFFS OR DUTIES OR TAXES. WE ALSO CANNOT MARK ALL ITEMS AS GIFTS. THAT IS COMPLETELY THE RESPONSIBILITY OF THE BUYER AND IS DETERMINED BY THEIR COUNTRY, NOT OURS. THE BUYER ALSO RECOGNIZES THAT OUT OF COUNTRY SALES TAKE MORE TIME FOR DELIVERY.

IF YOU HAVE ANY QUESTIONS PLEASE CONTACT US BEFORE BIDDING.

THANK YOU FOR LOOKING AT OUR LISTING.
PLEASE DO YOUR RESEARCH AS WE DO NOT MAKE ANY CLAIMS TO MERCHANTABILITY OR BEING COMPATIBLE TO YOUR APPLICATION.

You are only buying what is pictured or related to the item description.
